Disassembly

ENGINE HOOD / DOOR: BACK DOOR: DISASSEMBLY

DISASSEMBLY





1. REMOVE BACK DOOR TRIM UPPER PANEL ASSEMBLY

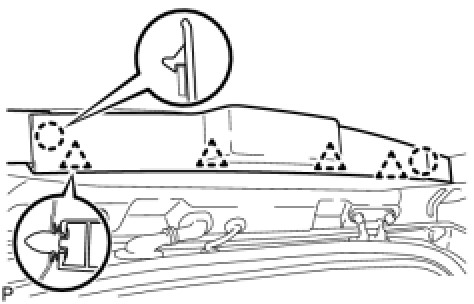

(a) Disengage the 4 clips and 2 claws and remove the back door trim upper panel assembly.






2. REMOVE BACK DOOR SIDE GARNISH LH
(a) Remove the pin.

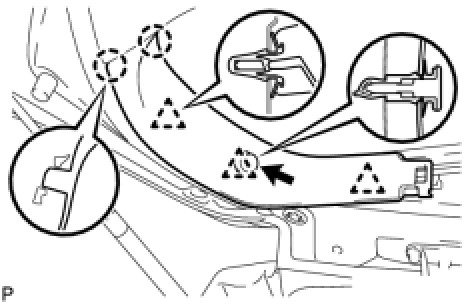

(b) Disengage the 3 clips and 2 claws and remove the back door side garnish LH.
3. REMOVE BACK DOOR SIDE GARNISH RH
HINT: Use the same procedure as for the LH side.

4. REMOVE HIGH MOUNTED STOP LIGHT ASSEMBLY Removal

5. REMOVE BACK DOOR INSIDE HANDLE

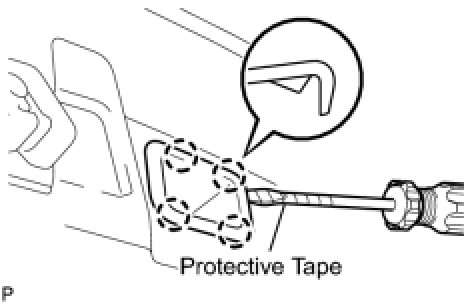

(a) Using a screwdriver with its tip wrapped in protective tape, disengage the 4 claws and remove the back door inside handle.
6. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

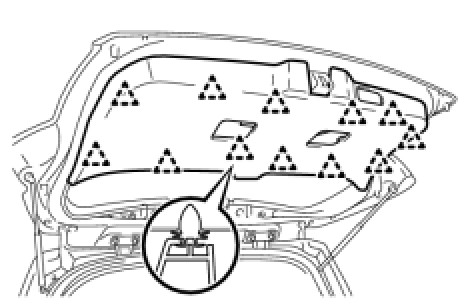

(a) Disengage the 12 clips and remove the back door trim board assembly.
7. REMOVE BACK DOOR FINISH PANEL COVER LH

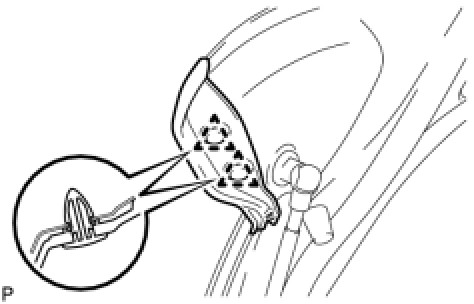

(a) Remove the 2 clips and remove the back door finish panel cover LH.
8. REMOVE BACK DOOR FINISH PANEL COVER RH
HINT: Use the same procedure as for the LH side.

9. REMOVE REAR WIPER ARM AND BLADE ASSEMBLY Removal

10. REMOVE REAR WIPER MOTOR Removal

11. REMOVE REAR WIPER MOTOR GROMMET Removal

12. REMOVE BACK DOOR OUTSIDE GARNISH

13. REMOVE BACK DOOR OPENER SWITCH ASSEMBLY Removal

14. REMOVE LICENSE PLATE LIGHT ASSEMBLY Removal

15. REMOVE BACK DOOR LOCK ASSEMBLY Removal

16. REMOVE REAR SPOILER SUB-ASSEMBLY Removal
