EXTERIOR: REAR BUMPER: REASSEMBLY

REASSEMBLY





1. INSTALL REAR BUMPER ARM LH

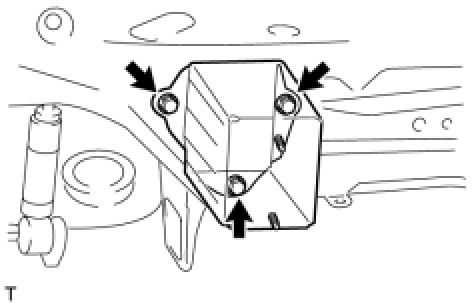

(a) Install rear bumper arm with the 3 bolts.
Torque: 19 Nm (194 kgf-cm, 14 ft-lbf)
2. INSTALL REAR BUMPER ARM RH
HINT: Use the same procedure as for the LH side.





3. INSTALL REAR CENTER BUMPER SUB-ASSEMBLY
(a) Install the rear bumper reinforcement with the 4 nuts.
Torque: 19 Nm (194 kgf-cm, 14 ft-lbf)






4. INSTALL REAR BUMPER GUARD SUB-ASSEMBLY

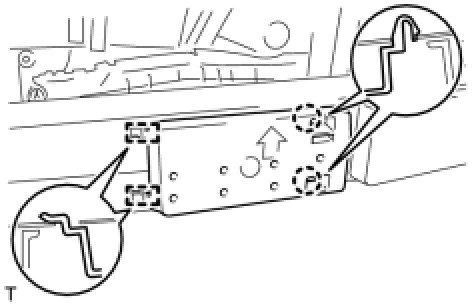

(a) Engage the 2 claws and 2 guides and install the rear bumper guard.






5. INSTALL REAR BUMPER SIDE SEAL LH

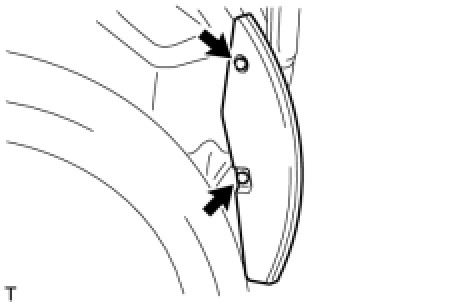

(a) Install the rear bumper side seal with the 2 clips.
6. INSTALL REAR BUMPER SIDE SEAL RH
HINT: Use the same procedure as for the LH side.





7. INSTALL REAR BUMPER SIDE SUPPORT LH

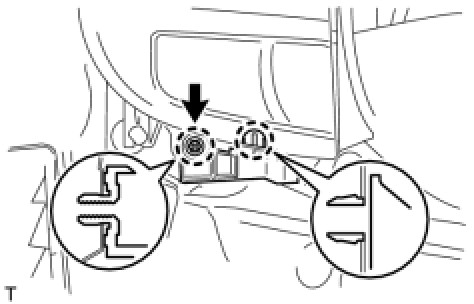

(a) Engage the 2 claws and install the rear bumper side support.
(b) Tighten the screw.
8. INSTALL REAR BUMPER SIDE SUPPORT RH
HINT: Use the same procedure as for the LH side.





9. INSTALL REAR BUMPER SIDE RETAINER LH

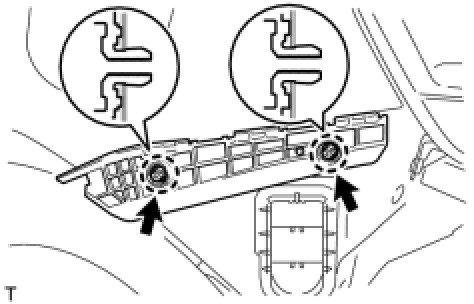

(a) Engage the 2 claws and install the rear bumper side retainer.
(b) Tighten the 2 screws.
10. INSTALL REAR BUMPER SIDE RETAINER RH
HINT: Use the same procedure as for the LH side.





11. INSTALL REFLEX REFLECTOR ASSEMBLY LH

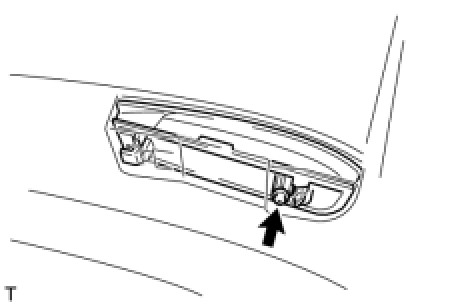

(a) Install the reflex reflector with the screw.
12. INSTALL REFLEX REFLECTOR ASSEMBLY RH
HINT: Use the same procedure as for the LH side.
