Installation

EXTERIOR: REAR BUMPER: INSTALLATION

INSTALLATION

1. INSTALL REAR BUMPER COVER

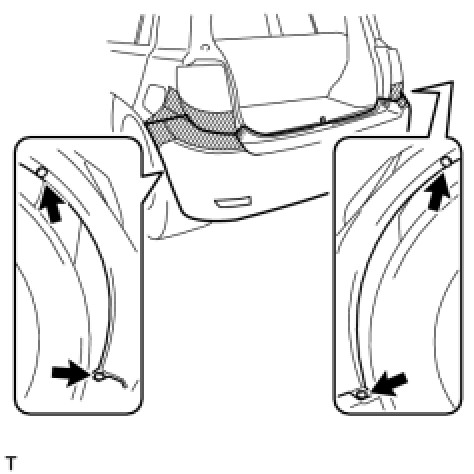

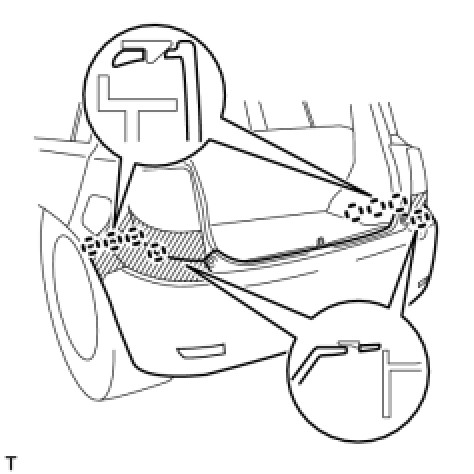

(a) Engage the 8 claws and install the rear bumper cover.






(b) Install the 4 clips.

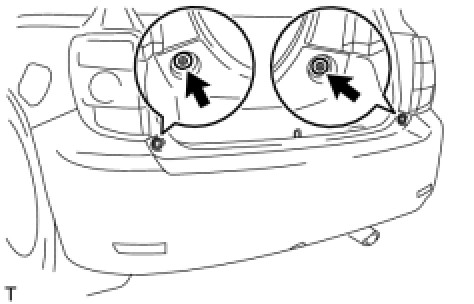

(c) Using a "TORX" socket wrench T30, install the 2 rear bumper cushions.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)
2. INSTALL NO. 1 FLOOR UNDER COVER

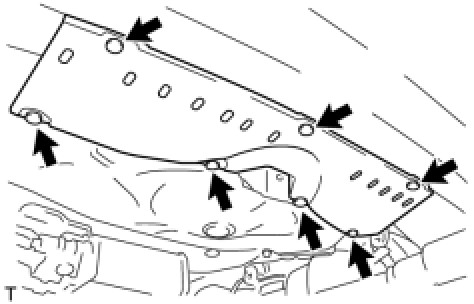

(a) Install the No. 1 floor under cover with the 7 clips.
