Installation

EXTERIOR: FRONT BUMPER: INSTALLATION

INSTALLATION

1. INSTALL FRONT BUMPER COVER

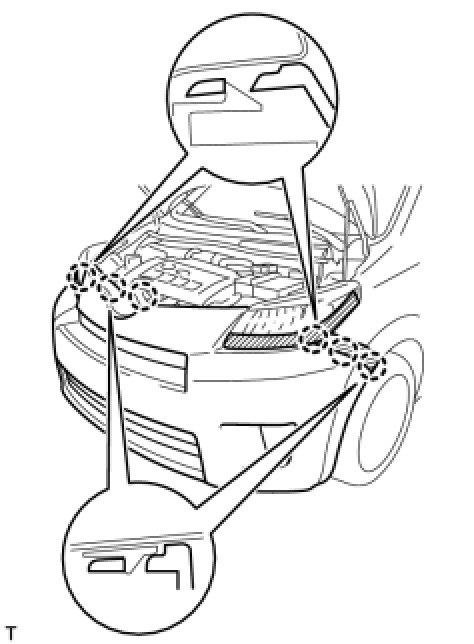

(a) Engage the 6 claws and install the front bumper cover.

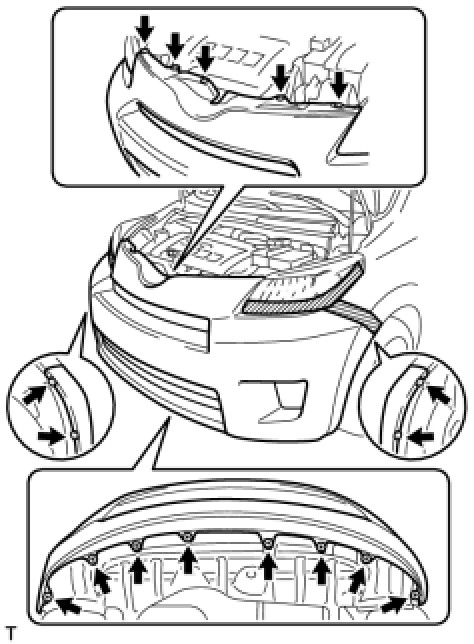

(b) Install the 9 clips.
(c) Tighten the 8 screws.
2. PREPARE VEHICLE FOR HEADLIGHT AIMING ADJUSTMENT Adjustments

3. PREPARE FOR HEADLIGHT AIMING (for Using a Tester) Adjustments

4. PREPARE FOR HEADLIGHT AIMING (for Using a Screen) Adjustments

5. INSPECT HEADLIGHT AIMING Adjustments

6. ADJUST HEADLIGHT AIMING Adjustments
