How To Proceed With Troubleshooting

DOOR LOCK: WIRELESS DOOR LOCK CONTROL SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HOW TO PROCEED WITH TROUBLESHOOTING
HINT:
- The wireless door lock control system troubleshooting procedures are based on the premise that the power door lock system is operating normally. Check the power door lock system first before troubleshooting the wireless door lock control system Problem Symptoms Table.
- Use these procedures to troubleshoot the wireless door lock control system.
- *: Use a Techstream.

1. VEHICLE BROUGHT TO WORKSHOP
NEXT -- Continue to next step.
2. CUSTOMER PROBLEM ANALYSIS CHECK
HINT:
- In troubleshooting, confirm that the problem symptoms have been accurately identified. Preconceptions should be discarded in order to make an accurate judgment. To clearly understand what the problem symptoms are, it is extremely important to ask the customer about the problem and the conditions at the time the malfunction occurred.
- Gather as much information as possible for reference. Past problems that seem unrelated may also help in some cases.

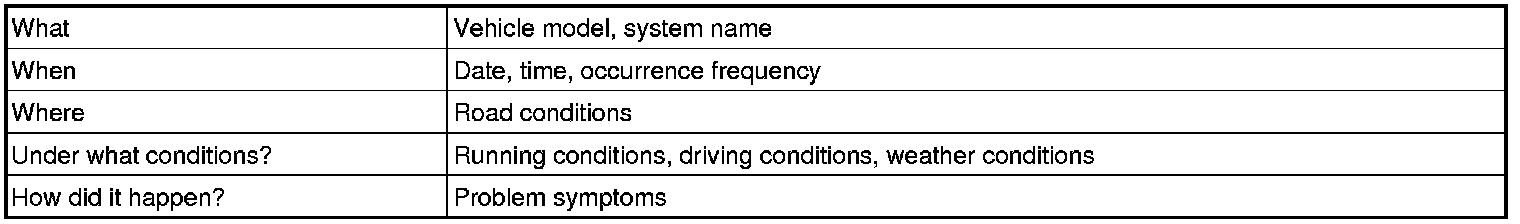

- The following 5 items are important points in the problem analysis:






NEXT -- Continue to next step.
3. INSPECT BATTERY VOLTAGE
Standard voltage:
11 to 14 V
If the voltage is below 11 V, recharge or replace the battery before proceeding.
NEXT -- Continue to next step.

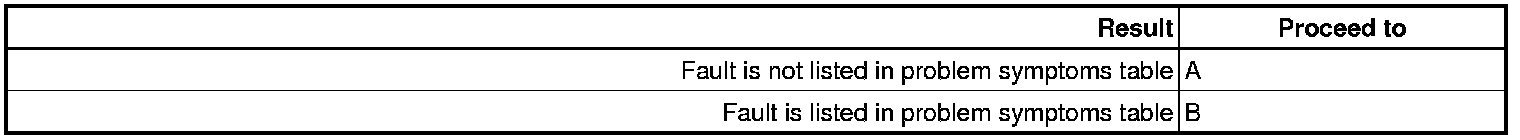

4. PROBLEM SYMPTOMS TABLE

Result:





B -- Go to step 6
A -- Continue to next step.
5. OVERALL ANALYSIS AND TROUBLESHOOTING*
(a) Operation Check Wireless Door Lock Control System

(b) DATA LIST / ACTIVE TEST Scan Tool Testing and Procedures

(c) Terminals of ECU Pinout Values and Diagnostic Parameters

NEXT -- Continue to next step.
6. REPAIR OR REPLACE
NEXT -- Continue to next step.
7. CONFIRMATION TEST*
NEXT -- END
