METER: METER / GAUGE SYSTEM: U0129: Lost Communication with Skid Control ECU

DTC U0129 - Lost Communication with Skid Control ECU

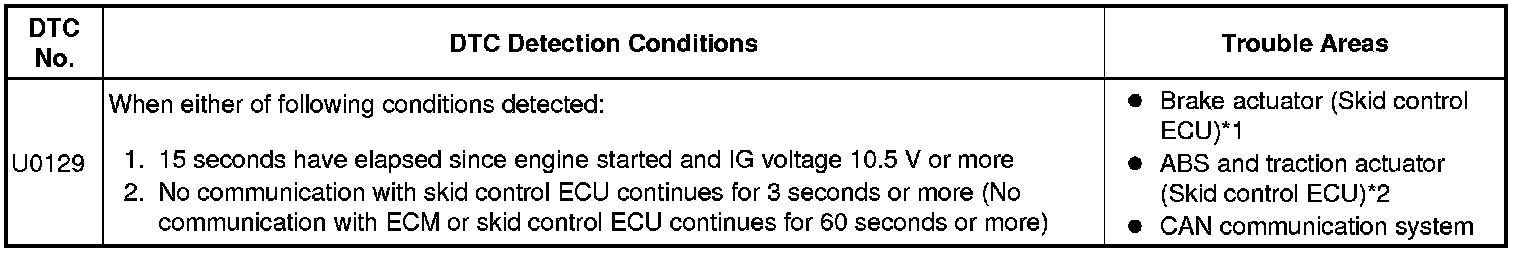

DESCRIPTION

The combination meter assembly receives signal from skid control ECU through the CAN communication system.






*1: for vehicles with ABS
*2: fro vehicles with VSC

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CONFIRM DTC OUTPUT
(a) Connect a Techstream to the DLC3.
(b) Turn the ignition switch on and turn the tester on.
(c) Check for DTCs and note any codes that are output .
(d) Clear the DTC .
(e) Recheck for DTC .
Result:






B -- USE SIMULATION METHOD TO CHECK
A -- GO TO CAN COMMUNICATION SYSTEM
