P2118

2ZR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P2118: Throttle Actuator Control Motor Current Range / Performance

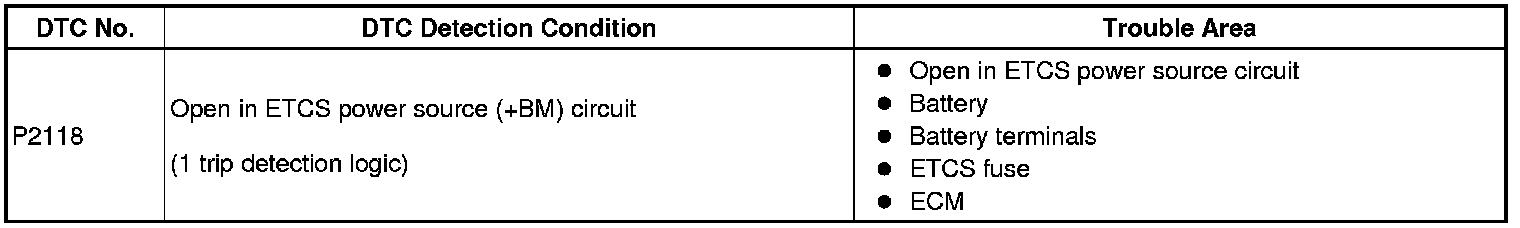

DTC P2118 - Throttle Actuator Control Motor Current Range / Performance

DESCRIPTION

The ETCS (Electronic Throttle Control System) has a dedicated power supply circuit. The voltage (+BM) is monitored and when it is low (less than 4 V), the ECM determines that there is a malfunction in the ETCS and cuts off the current to the throttle actuator.
When the voltage becomes unstable, the ETCS itself becomes unstable. For this reason, when the voltage is low, the current to the throttle actuator is cut. If repairs are made and the system returns to normal, turn the ignition switch to OFF. The ECM then allows the current to flow to the throttle actuator so that it can be restarted.
HINT: The ETCS does not use a throttle cable.









MONITOR DESCRIPTION

The ECM monitors the battery supply voltage applied to the throttle actuator.
When the power supply voltage (+BM) drops below 4 V for 0.8 seconds or more, the ECM interprets this as an open in the power supply circuit (+BM). The ECM illuminates the MIL and sets the DTC.
If the malfunction is not repaired successfully, the DTC is set 5 seconds after the engine is next started.

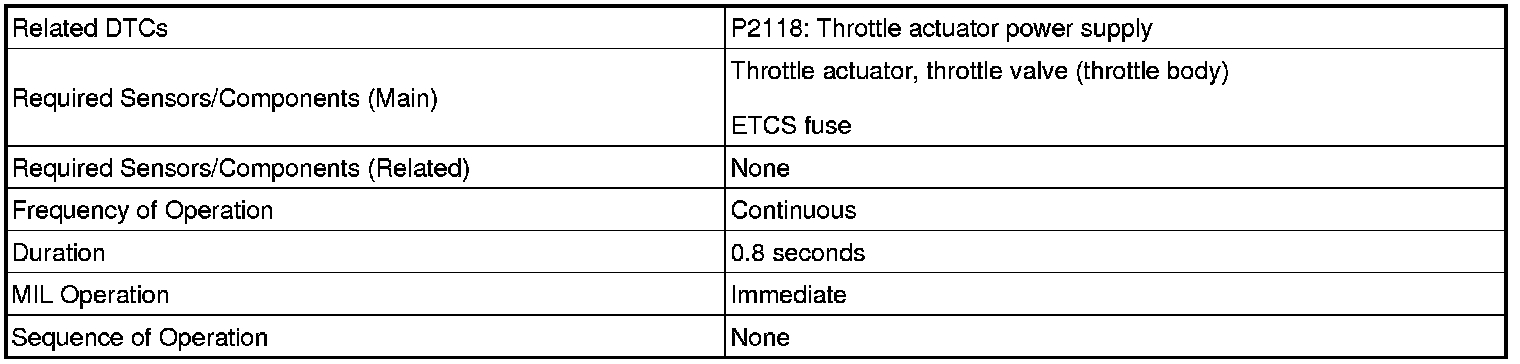

MONITOR STRATEGY

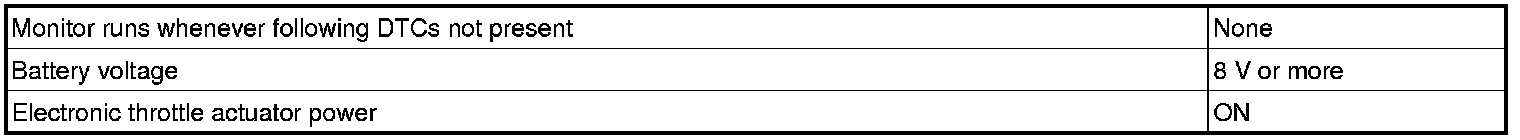

TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





COMPONENT OPERATING RANGE





FAIL-SAFE

When this DTC, or other DTCs relating to ETCS (Electronic Throttle Control System) malfunctions, are set, the ECM enters fail-safe mode. During fail-safe mode, the ECM cuts the current to the throttle actuator, and the throttle valve is returned to a 6° throttle angle by the return spring. The ECM then adjusts the engine output by controlling the fuel injection (intermittent fuel-cut) and ignition timing, in accordance with the accelerator pedal opening angle, to allow the vehicle to continue at a minimal speed. If the accelerator pedal is depressed firmly and gently, the vehicle can be driven slowly.
Fail-safe mode continues until a pass condition is detected, and the ignition switch is then turned to OFF.

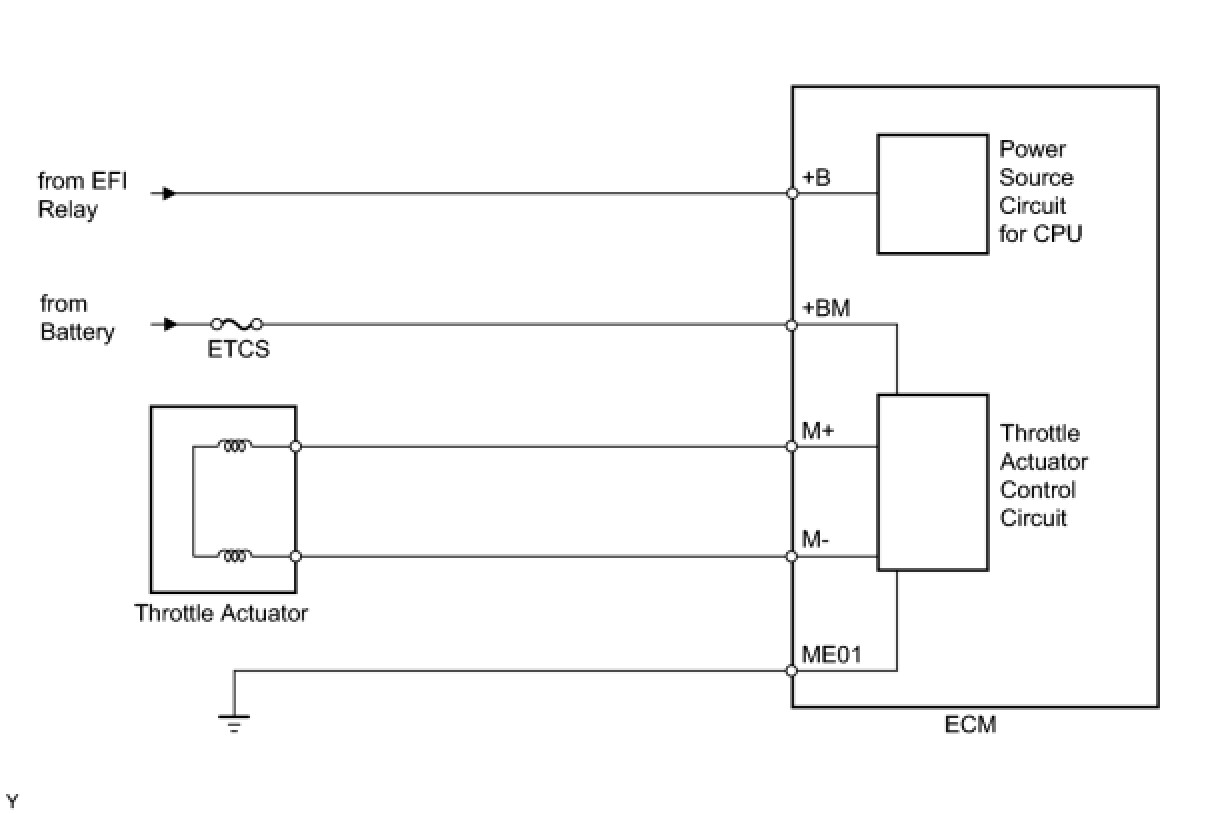

WIRING DIAGRAM





INSPECTION PROCEDURE
HINT: Read freeze frame data using a Techstream. Freeze frame data records the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1. READ VALUE USING TECHSTREAM (+BM VOLTAGE)
(a) Connect a Techstream to the DLC3.
(b) Turn the ignition switch to ON.
(c) Turn the tester ON.
(d) Select the following menu items: Powertrain / Engine and ECT / Data List / All Data / +BM Voltage.
(e) Read the value displayed on the tester.
Standard voltage:
11 to 14 V
NG -- CHECK FUSE (ETCS FUSE)
OK -- Continue to next step.
2. INSPECT BATTERY
(a) Check that the battery is not depleted.
OK:
Battery is not depleted
NG -- REPLACE BATTERY
OK -- Continue to next step.
3. CHECK BATTERY TERMINAL
(a) Check that the battery terminals and ECM ground are not loose or corroded.
OK:
Battery terminals and ECM ground are not loose or corroded
NG -- REPAIR OR REPLACE BATTERY TERMINAL
OK -- CHECK FOR INTERMITTENT PROBLEMS
4. CHECK FUSE (ETCS FUSE)

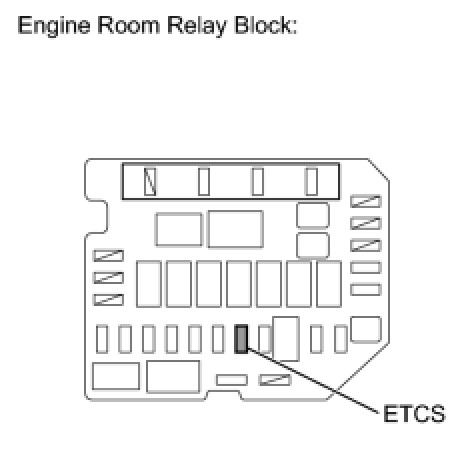

(a) Remove the ETCS fuse from the engine room relay block.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:





(c) Reinstall the ETCS fuse from the engine room relay block.
NG -- CHECK FOR SHORTS IN ALL HARNESSES AND CONNECTORS CONNECTED TO FUSE AND REPLACE FUSE
OK -- Continue to next step.
5. CHECK HARNESS AND CONNECTOR (ECM - ETCS FUSE - BATTERY)





(a) Check the harness and connector between the ETCS fuse and ECM.
(1) Remove the ETCS fuse from the engine room relay block.
(2) Disconnect the ECM connector.

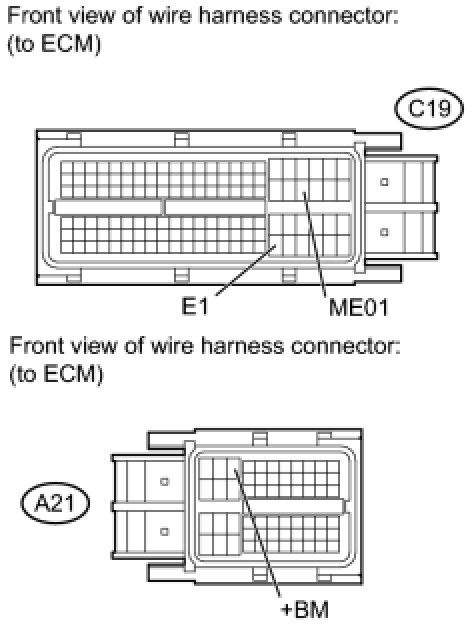

(3) Measure the resistance according to the value(s) in the table below.
Standard resistance (Check for open):






Standard resistance (Check for short):






(4) Reinstall the ETCS fuse.
(5) Reconnect the ECM connector.
(b) Check the harness and connector between the ETCS fuse and positive (+) battery terminal.
(1) Remove the ETCS fuse from the engine room relay block.
(2) Disconnect the cable from the positive (+) battery terminal.
(3) Measure the resistance according to the value(s) in the table below.
Standard resistance (Check for open):






Standard resistance (Check for short):






(4) Reinstall the ETCS fuse.
(5) Reconnect the cable.
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
6. INSPECT ECM (+BM VOLTAGE)





(a) Disconnect the ECM connectors.
(b) Measure the voltage according to the value(s) in the table below.

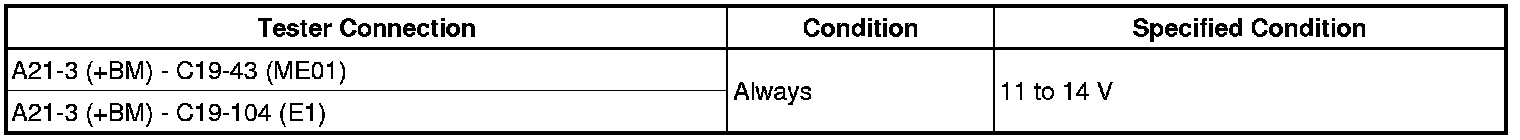

Standard voltage:





(c) Reconnect the ECM connectors.
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (TERMINALS E1 AND ME01 - BODY GROUND)
OK -- REPLACE ECM
