P0630

2ZR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0630: VIN not Programmed or Mismatch - ECM / PCM

DTC P0630 - VIN not Programmed or Mismatch - ECM / PCM

MONITOR DESCRIPTION

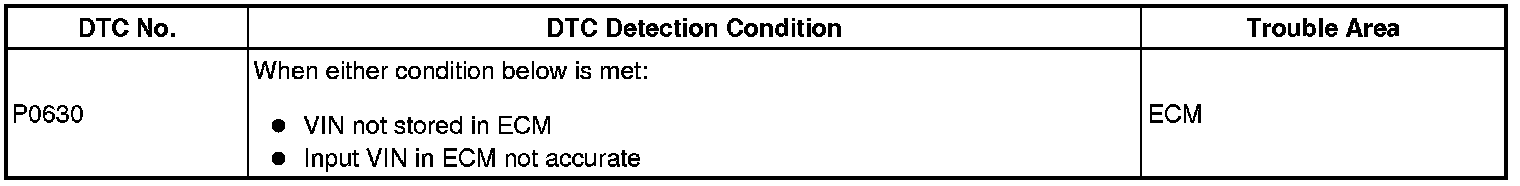

DTC P0630 is set when the Vehicle Identification Number (VIN) is not stored in the Engine Control Module (ECM) or the input VIN is not accurate. Input the VIN with a Techstream.

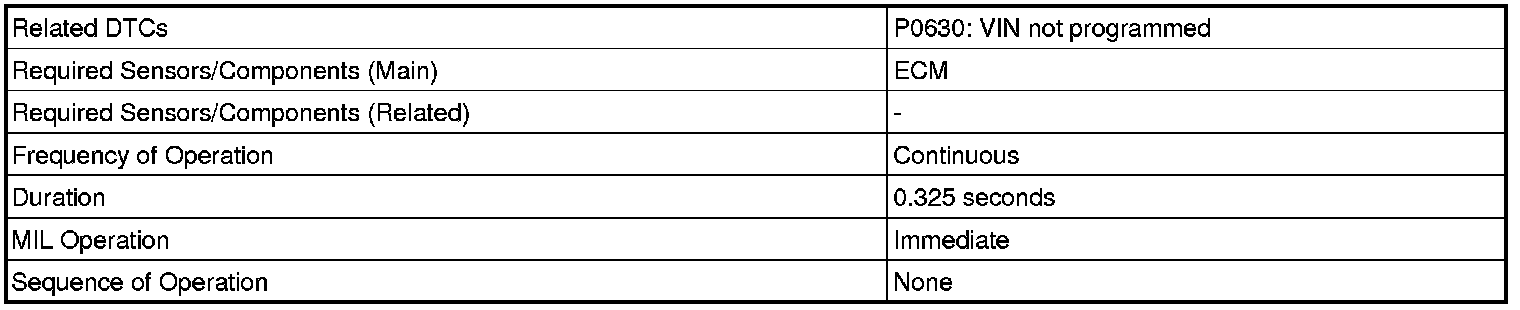

MONITOR STRATEGY

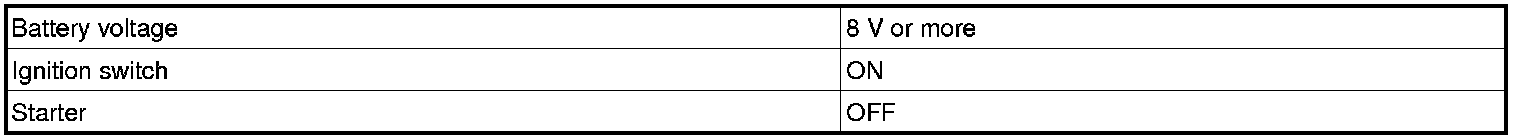

TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





COMPONENT OPERATING RANGE





INSPECTION PROCEDURE

PROCEDURE

1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P0630)
(a) Connect a Techstream to the DLC3.
(b) Turn the ignition switch to ON.
(c) Turn the tester ON.
(d) Select the following menu items: Powertrain / Engine and ECT / Trouble Codes.
(e) Read DTCs.

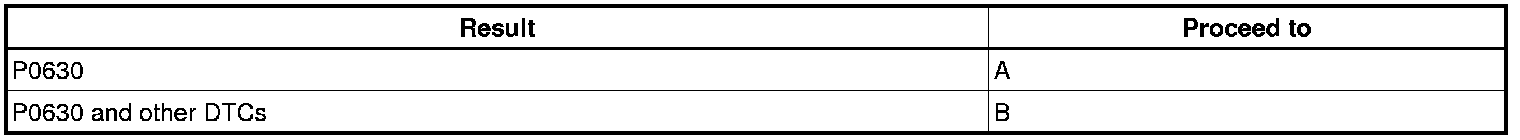

Result:





If any DTCs other than P0630 are output, troubleshoot those DTCs first.
NOTE: If P0630 is set, the VIN must be input to the ECM using the Techstream. However, all DTCs are cleared automatically by the tester when inputting the VIN. If DTCs other than P0630 are set, check them first.

B -- GO TO DTC CHART
A -- Continue to next step.
2. INPUT VIN
(a) Input VIN Programming and Relearning.
NEXT -- END
