P0575

CRUISE CONTROL: CRUISE CONTROL SYSTEM: P0575: Cruise Control Input Circuit

DTC P0575 - Cruise Control Input Circuit

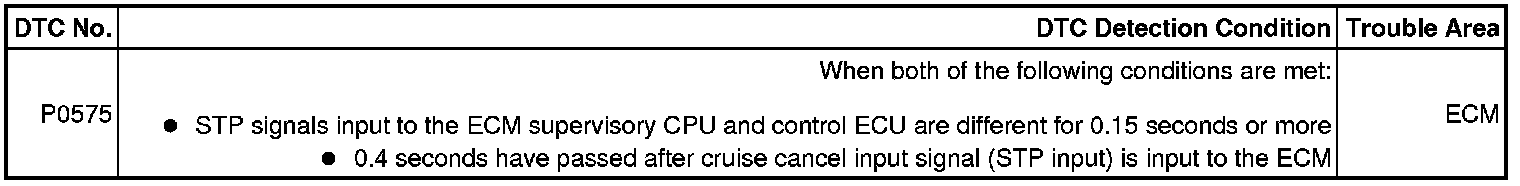

DESCRIPTION

This DTC indicates the internal abnormalities of the ECM.





HINT: If DTC P0575 is detected while the cruise control is in operation, the skid control ECU clears the stored vehicle speed in the ECM and cancels the cruise control operation. At the same time, the CRUISE main indicator light blinks to inform the driver of the malfunction. When this trouble code is detected, fail-safe remains on until the engine switch is turned off.

INSPECTION PROCEDURE

PROCEDURE

1. CHECK FOR DTC
(a) Clear the DTC .
(b) Recheck for DTC.
OK:
DTC P0575 is not output.
NG -- REPLACE ECM
OK -- USE SIMULATION METHOD TO CHECK
