2ZR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0016: Crankshaft Position - Camshaft Position Correlation (Bank 1 Sensor A)
DTC P0016 - Crankshaft Position - Camshaft Position Correlation (Bank 1 Sensor A)
DTC P0017 - Crankshaft Position - Camshaft Position Correlation (Bank 1 Sensor B)

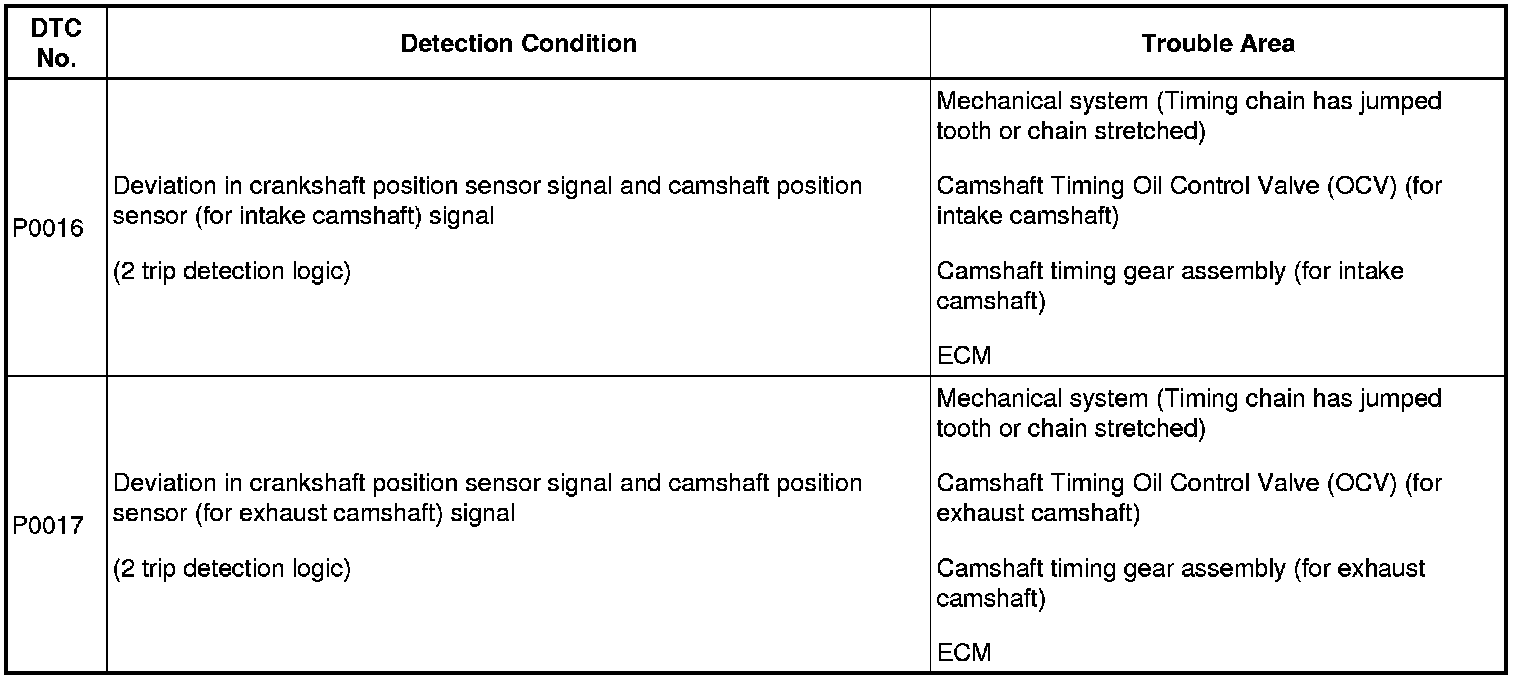

DESCRIPTION
The ECM optimizes the valve timing by using the VVT (Variable Valve Timing) system to control the intake and exhaust camshaft. The VVT system includes the ECM, the Camshaft Timing Oil Control Valve (OCV) and the VVT controller (camshaft timing gear assembly). The ECM sends a target duty-cycle control signal to the OCV.
This control signal regulates the oil pressure supplied to the VVT controller. The VVT controller can advance or retard the intake and exhaust camshaft.
MONITOR DESCRIPTION
To monitor the correlation of the intake camshaft position and crankshaft position, the ECM checks the VVT learning value while the engine is idling. The VVT learning value is calibrated based on the camshaft position and crankshaft position. The intake valve timing is set to the most retarded angle while the engine is idling. If the VVT learning value is out of specified range in consecutive driving cycles, the ECM illuminates the MIL and sets the DTC P0016.
To monitor the correlation of the exhaust camshaft position and crankshaft position, the ECM checks the VVT learning value while the engine is idling. The VVT learning value is calibrated based on the camshaft position and crankshaft position. The exhaust valve timing is set to the most advanced angle while the engine is idling. If the VVT learning value is out of specified range in consecutive driving cycles, the ECM illuminates the MIL and sets the DTC P0017.
This DTC indicates that the intake camshaft has been installed toward the crankshaft at an incorrect angle, caused by factors such as the timing chain having jumped a tooth.
This monitor begins to run after the engine has idled for 5 minutes.

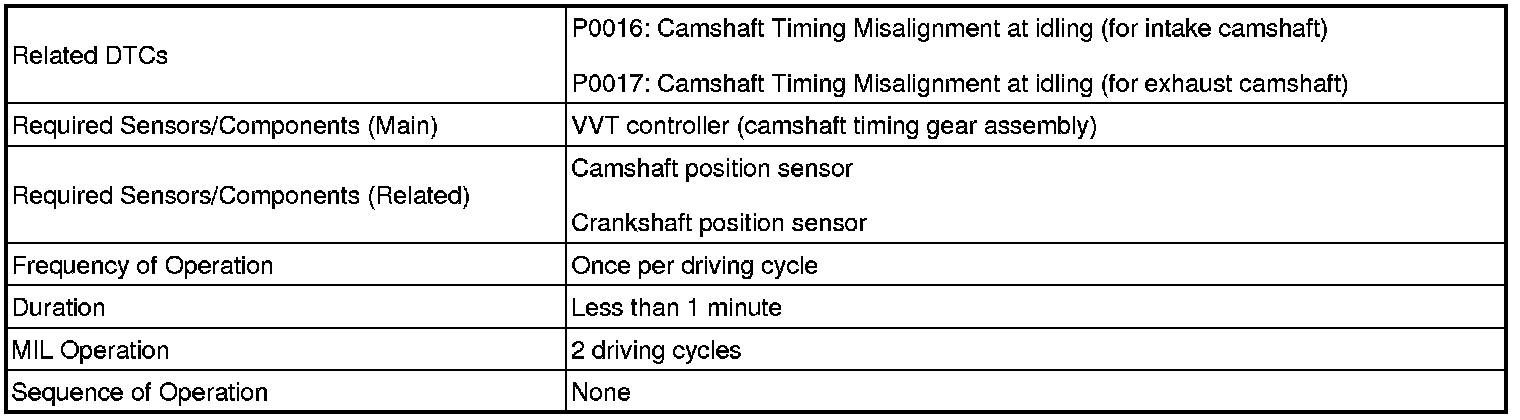

MONITOR STRATEGY
TYPICAL ENABLING CONDITIONS
TYPICAL MALFUNCTION THRESHOLDS

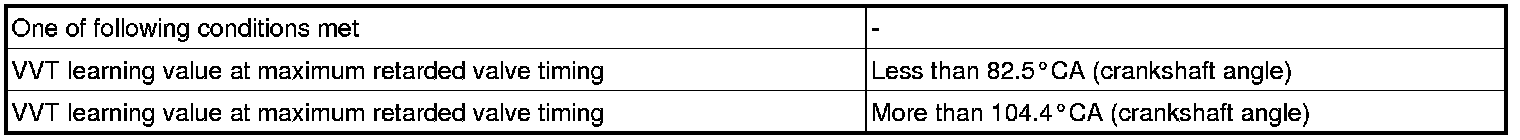

P0016 (Intake side)

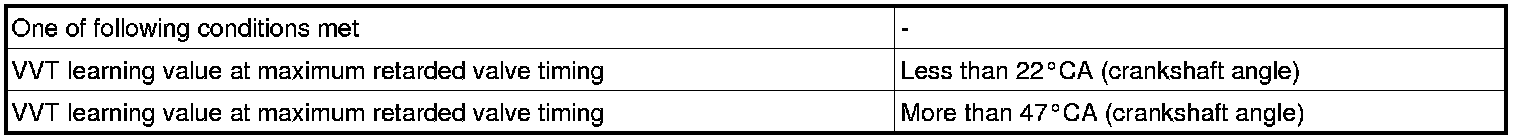

P0017 (Exhaust side)
INSPECTION PROCEDURE
HINT: Read freeze frame data using a Techstream. Freeze frame data records the engine conditions when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.
PROCEDURE
1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P0016 AND P0017)
(a) Connect a Techstream to the DLC3.
(b) Turn the ignition switch to ON.
(c) Turn the tester ON.
(d) Select the following menu items: Powertrain / Engine and ECT / Trouble Codes.

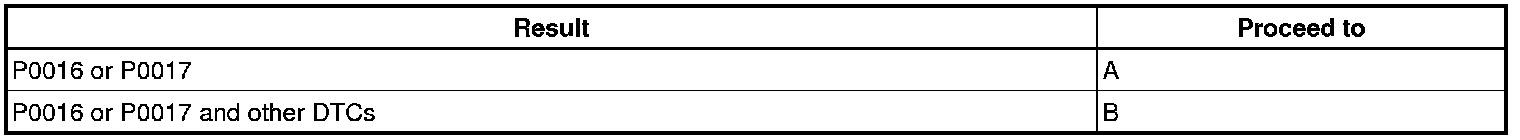

(e) Read DTCs.
Result:
HINT: If any DTCs other than P0016 or P0017 are output, troubleshoot those DTCs first.
B -- GO TO DTC CHART
A -- Continue to next step.
2. PERFORM ACTIVE TEST USING TECHSTREAM (OPERATE OCV)
(a) Connect a Techstream to the DLC3.
(b) Start the engine.
(c) Turn the tester ON.
(d) Warm up the engine.
(e) Select the following menu items: Powertrain / Engine and ECT / Active Test / Control the VVT System (Bank 1).
(f) Select the following monitor items: VVT Change Angle (Bank1) and VVT OCV Duty (Bank1).
(g) Check that the VVT Change Angle (Bank1) varies when operating the OCV (for intake camshaft) using the tester.
OK:
The VVT Change Angle (Bank1) value and engine speed vary.
(h) Select the following menu items: Powertrain / Engine and ECT / Active Test / Control the VVT Exhaust Linear (Bank 1).
(i) Select the following monitor items: VVT Ex Change Angle (Bank1) and VVT Ex OCV Duty (Bank1).
(j) Check that the VVT Ex Change Angle (Bank1) value varies when operating the OCV (for exhaust camshaft) using the tester.
OK:
The VVT Ex Change Angle (Bank1) value and engine speed vary.
HINT: If the VVT system can be operated through the ACTIVE TEST, it can be assumed that the VVT system is operating normally.
NG -- INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (FOR INTAKE OR EXHAUST CAMSHAFT)
OK -- Continue to next step.
3. ADJUST VALVE TIMING
HINT: There are no marks on the cylinder head to match-up for the purpose of checking valve timing. Valve timing can only be inspected by lining up the colored plates on the timing chain with the marks on the pulleys. It may be necessary to remove and re-install the chain to match up the alignment marks Reassembly.
NEXT -- CONFIRM WHETHER MALFUNCTION HAS BEEN SUCCESSFULLY REPAIRED
4. INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (FOR INTAKE OR EXHAUST CAMSHAFT)
HINT: Inspect the specified OCV (OCV for intake camshaft or OCV for exhaust camshaft) in accordance with the inspection result of step 2.
(a) Remove the OCV (for intake camshaft) or OCV (for exhaust camshaft) Removal.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:

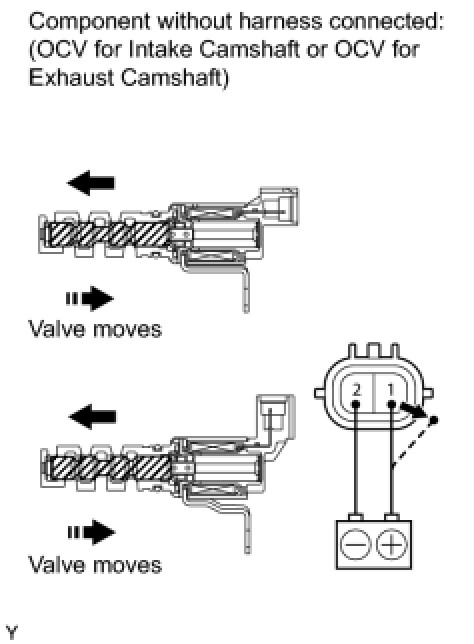

(c) Apply battery voltage to terminals of the OCV (for intake camshaft) or OCV (for exhaust camshaft). Check the valve operation.
OK:
Valve moves quickly.
(d) Reinstall the OCV (for intake camshaft) or OCV (for exhaust camshaft) Installation.
NG -- REPLACE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (INTAKE OR EXHAUST)
OK -- Continue to next step.
5. INSPECT OIL CONTROL VALVE FILTER
(a) Remove the OCV filter Disassembly.
(b) Check that the filter is not clogged.
OK:
Filter is not clogged.
(c) Reinstall the OCV filter Reassembly.
NG -- CLEAN OIL CONTROL VALVE FILTER
OK -- Continue to next step.
6. REPLACE CAMSHAFT TIMING GEAR ASSEMBLY
HINT: Replace the specified camshaft timing gear (camshaft timing gear for intake camshaft or exhaust camshaft) in accordance with the inspection result of step 2.
(a) Replace the camshaft timing gear assembly (camshaft timing gear for intake camshaft or exhaust camshaft) Removal.
NEXT -- Continue to next step.
7. CONFIRM WHETHER MALFUNCTION HAS BEEN SUCCESSFULLY REPAIRED
(a) In order to erase the ECM's learned values for valve timing, disconnect the cable from the negative (-) battery terminal for 1 minute.
(b) Reconnect the cable to the negative (-) battery terminal.
(c) Connect a Techstream to the DLC3.
(d) Turn the ignition switch to ON.
(e) Turn the tester ON.
(f) Clear DTCs DTC Check / Clear.
(g) Start the engine and warm it up.
(h) Switch the ECM from normal mode to check mode using the tester Check Mode Procedure.
(i) Allow the engine to idle for 5 minutes or more.
(j) Drive the vehicle with a city drive pattern for more than 10 minutes.
(k) Select the following menu items: Powertrain / Engine and ECT / Trouble Codes.

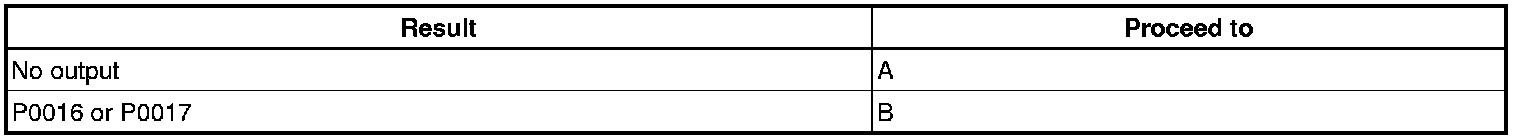

(l) Read DTCs.
Result:
B -- REPLACE ECM
A -- END
