Occupant Classification System
SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

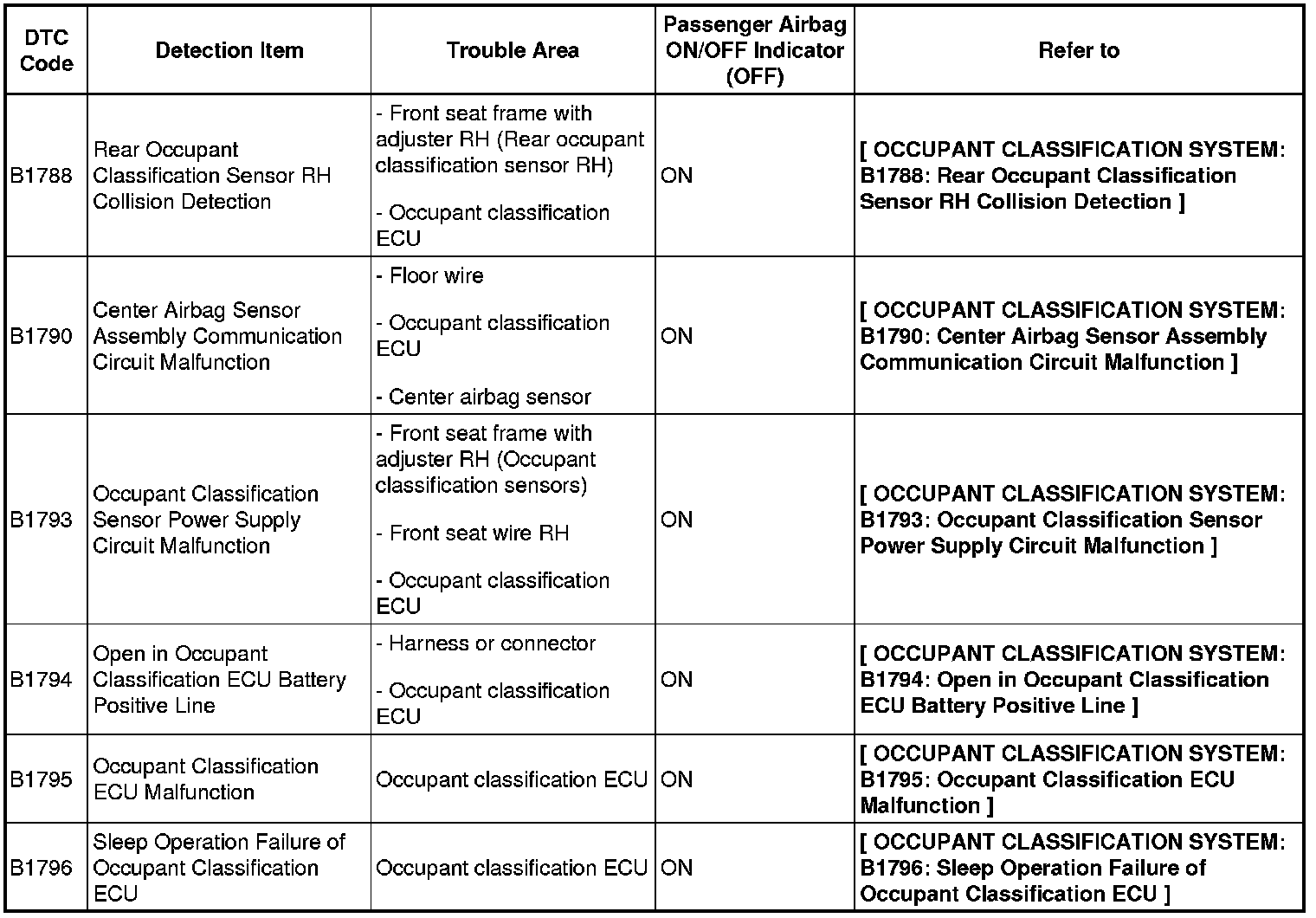

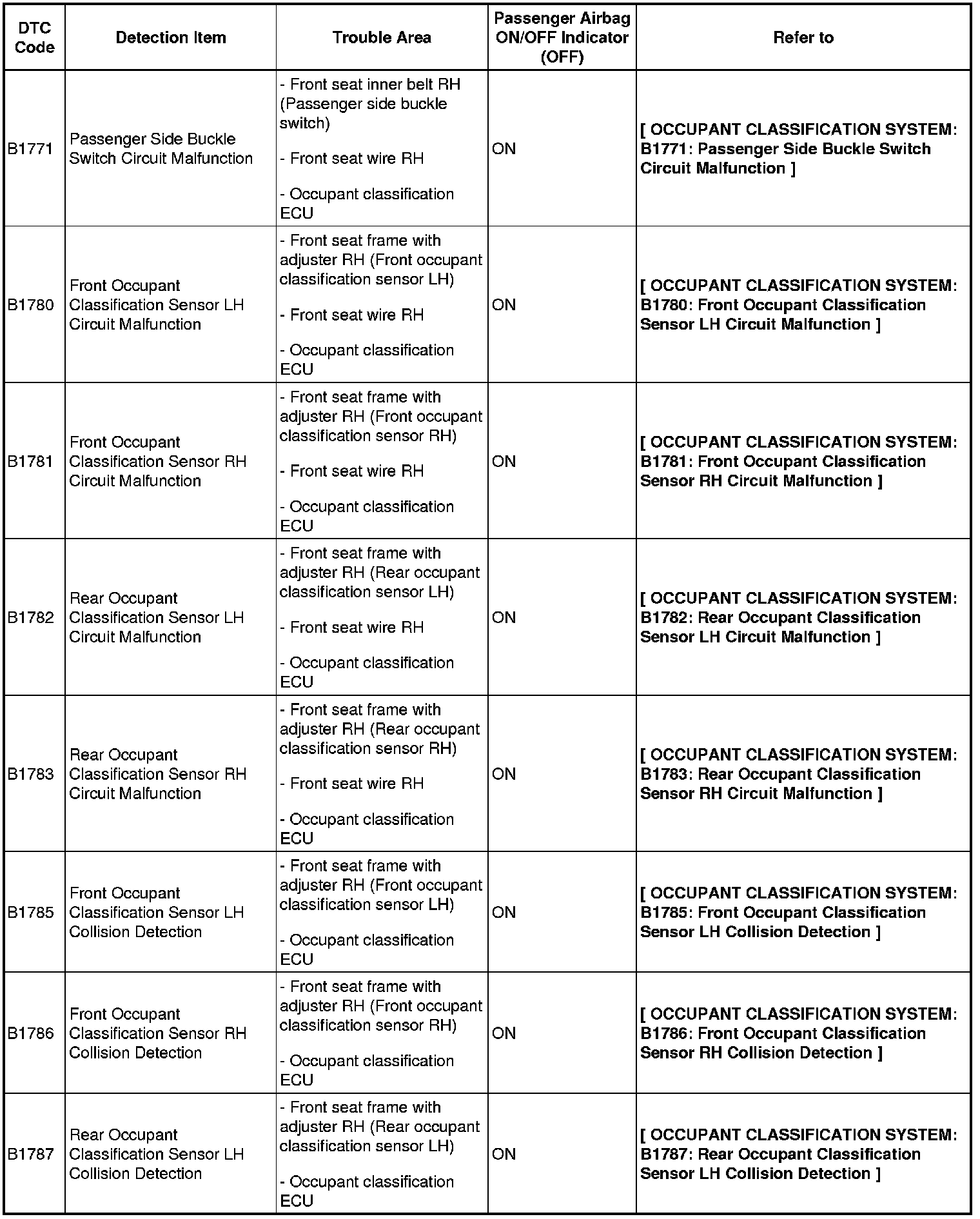

DIAGNOSTIC TROUBLE CODE CHART
HINT:
- When DTC B1650/32 is detected as a result of troubleshooting for the "AIRBAG SYSTEM", perform troubleshooting for the "OCCUPANT CLASSIFICATION SYSTEM" as shown in the chart below.
- Use a Techstream to read and clear the DTC of the occupant classification ECU, otherwise the DTCs cannot be read and cleared.
Occupant Classification System
