ABS (Antilock Brake System)

BRAKE CONTROL: ANTI-LOCK BRAKE SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
NOTE: Turn the ignition switch to OFF before removing parts.
HINT:
- If no abnormality is found when inspecting parts, inspect the skid control ECU and ground points for poor contact.
- If a trouble code is displayed during the DTC check, check the circuit indicated by the DTC. For details of each code, refer to the respective "DTC Code" in the DTC chart.
- When 2 or more DTCs are detected, perform circuit inspection one by one until the problem is identified.
- Inspect the fuse and relay before investigating the trouble areas as shown in the table below.

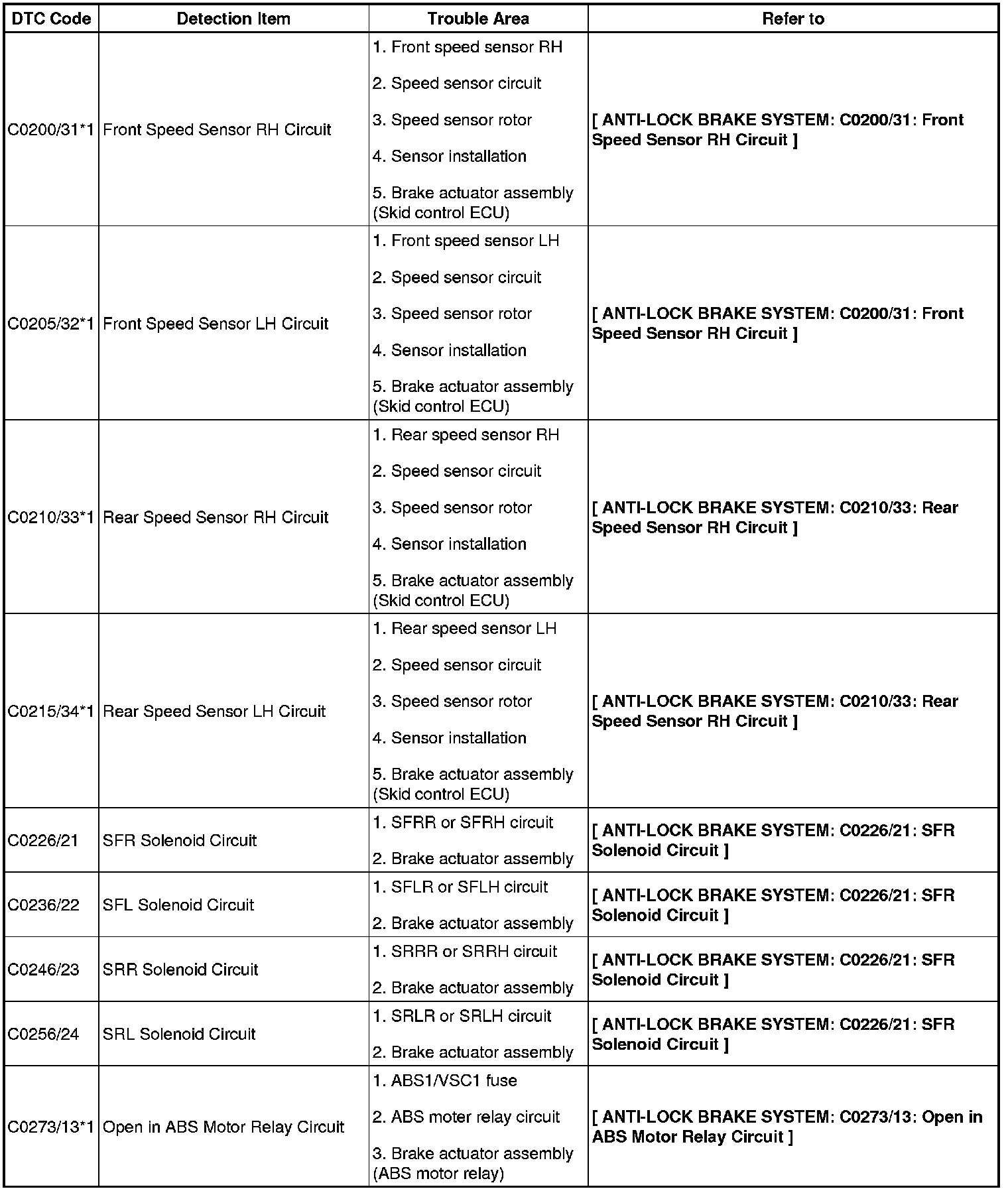

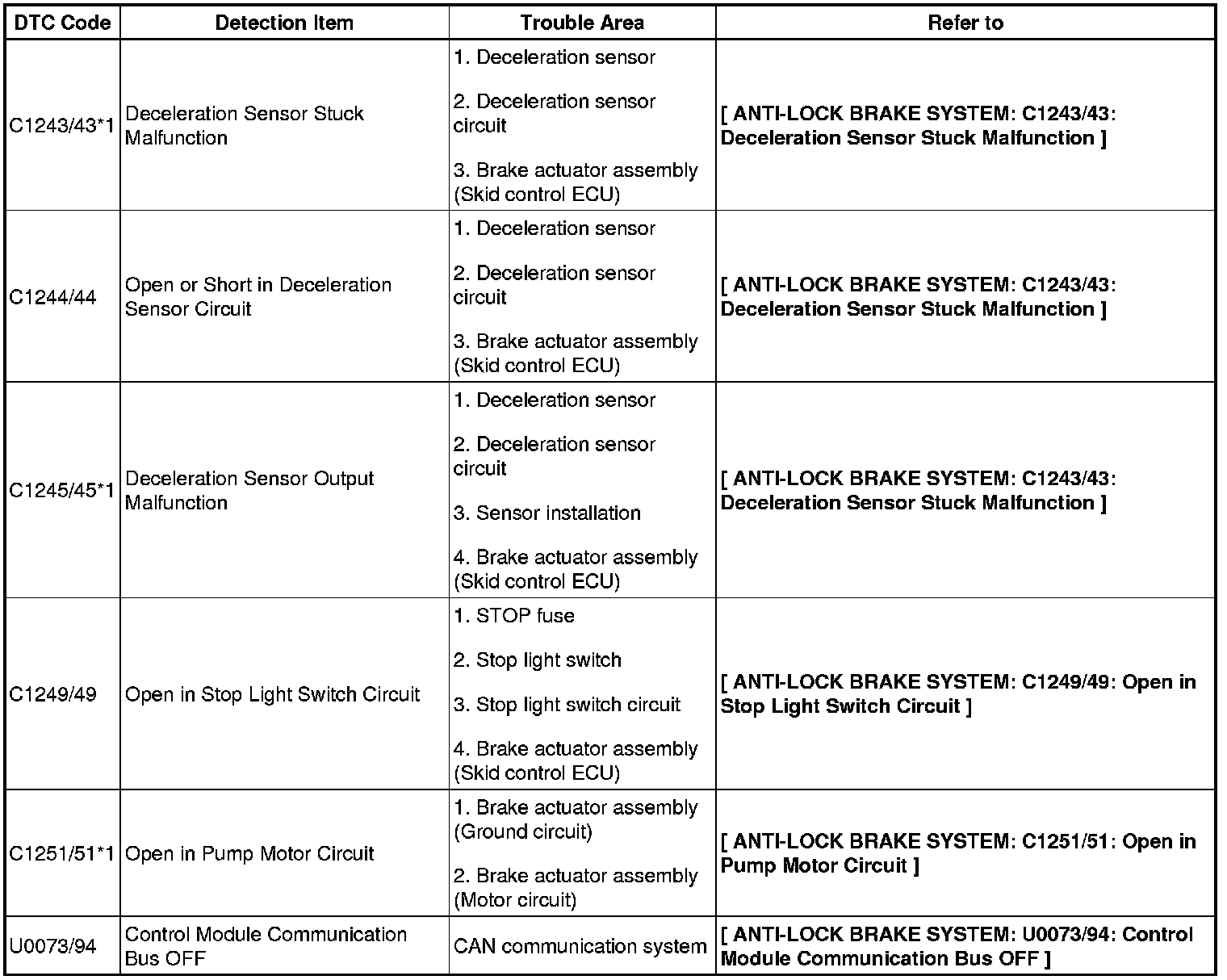

DTC chart of ABS:













(*1):
Even after the trouble areas are repaired, the ABS warning light will not go off unless the following operations are performed:

- Drive the vehicle at 20 km/h (12 mph) for 30 seconds or more and check that the ABS warning light goes off.
- Clear the DTC.
HINT: In some cases, the Techstream cannot be used when the ABS warning light remains on.

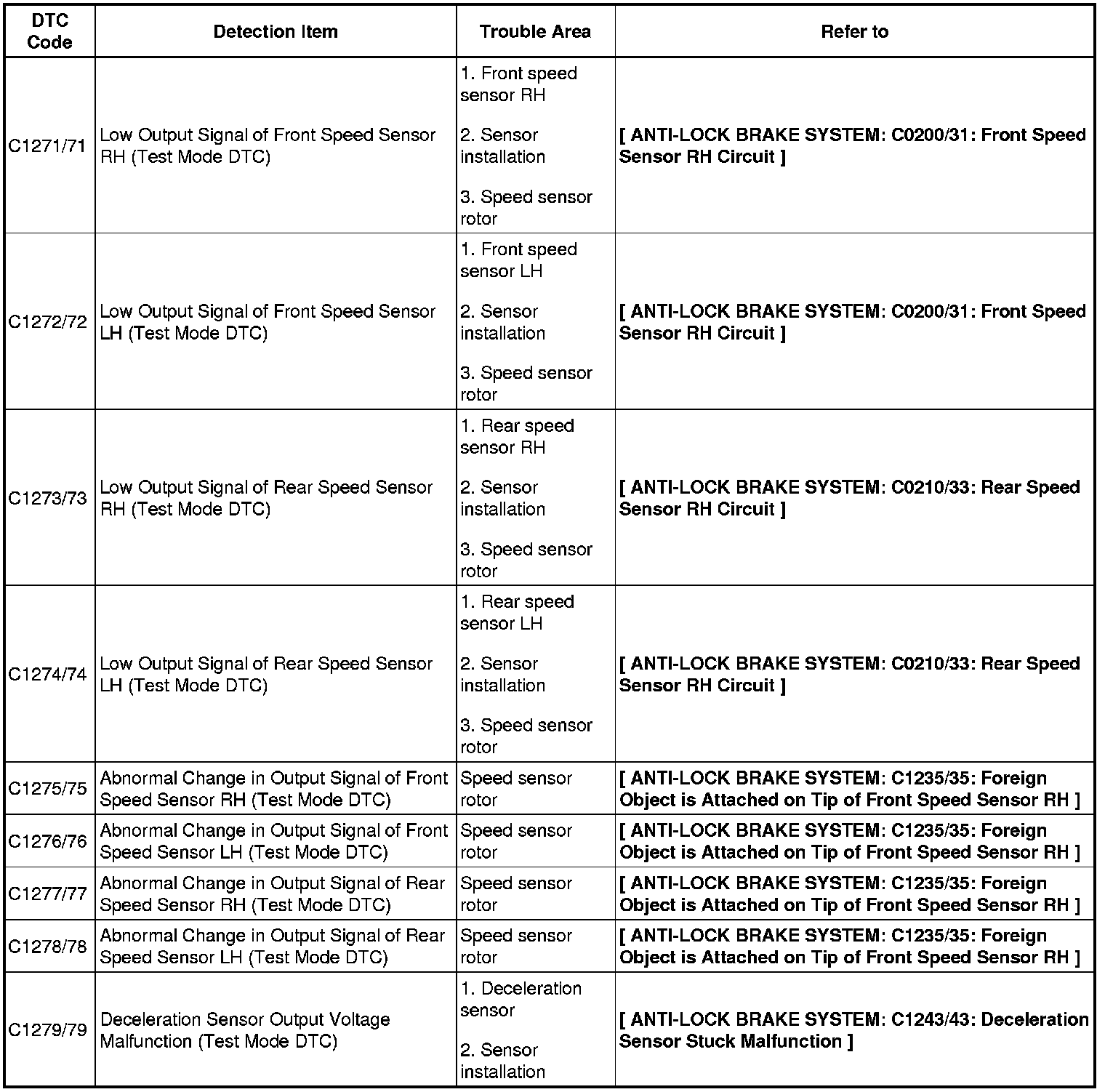

Test Mode DTC of ABS:
