SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B1610/13: Front Airbag Sensor RH Malfunction

DTC B1610/13 - Front Airbag Sensor RH Malfunction

DESCRIPTION

The front airbag sensor RH consists of the diagnostic circuit, the frontal deceleration sensor, etc.
If the center airbag sensor receives signals from the frontal deceleration sensor, it determines whether the SRS should be activated.

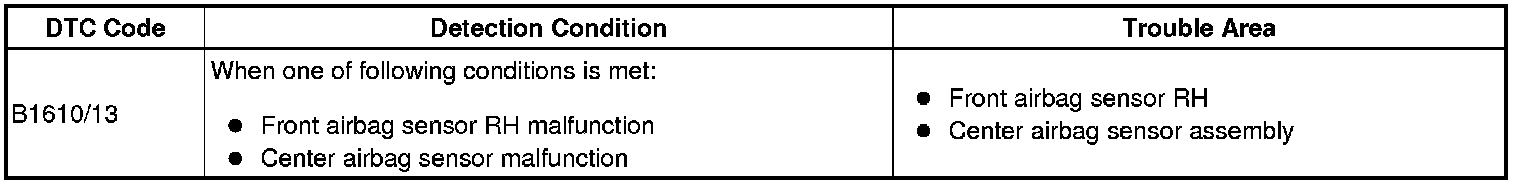

DTC B1610/13 is recorded when a malfunction is detected in the front airbag sensor RH circuit.

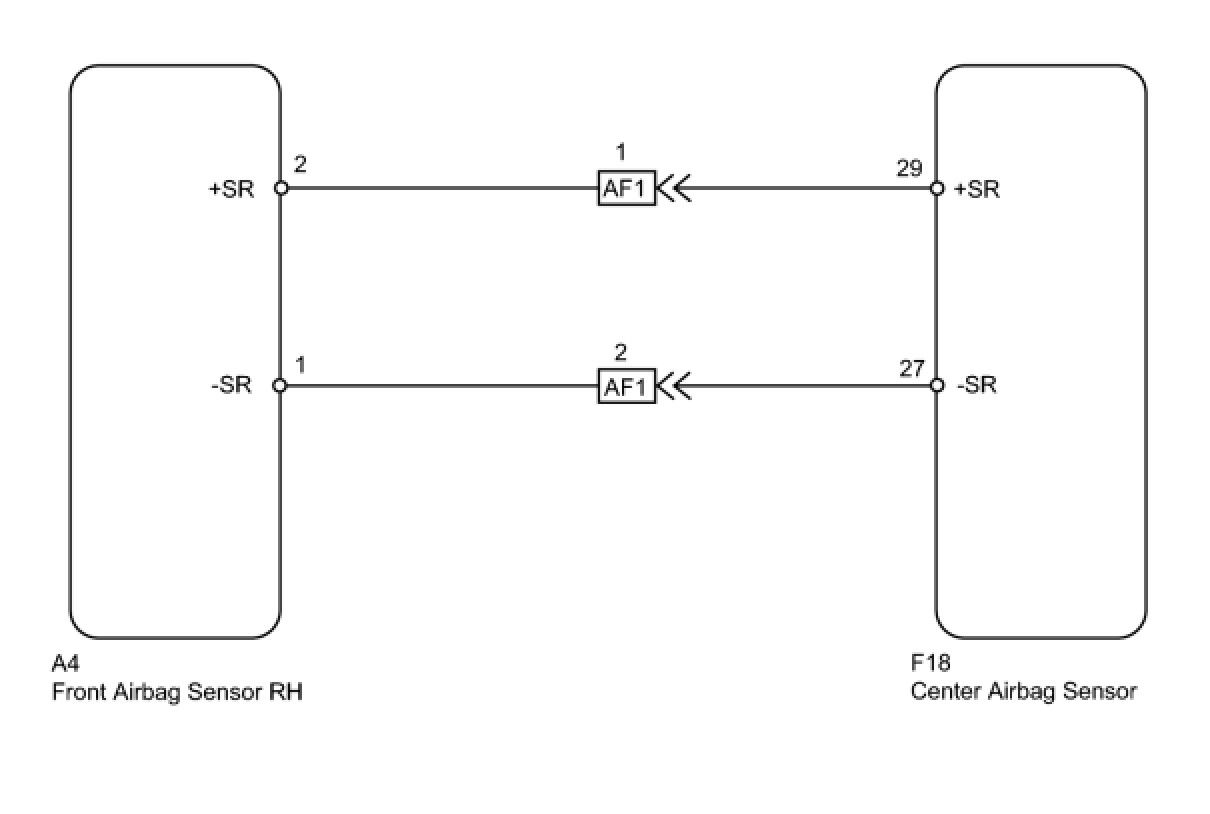

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK FRONT AIRBAG SENSOR RH





(a) Turn the ignition switch to OFF.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) Interchange the front airbag sensor LH with RH and connect the connectors to them.
(d) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
(e) Turn the ignition switch to ON, and wait for at least 60 seconds.
(f) Clear the DTCs stored in the memory.
(g) Turn the ignition switch to OFF.
(h) Turn the ignition switch to ON, and wait for at least 60 seconds.
(i) Check for DTCs.

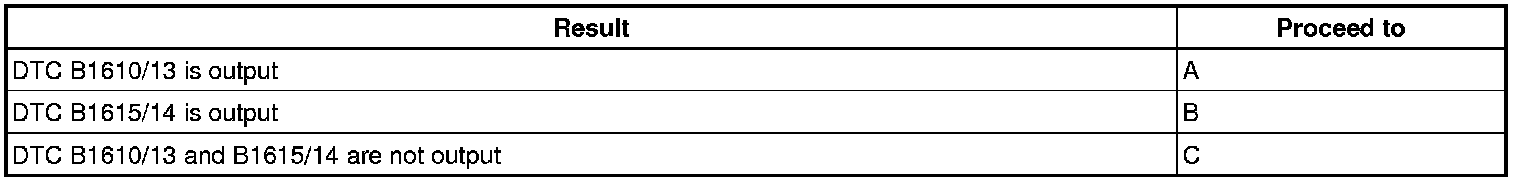

Result





HINT: Codes other than DTC B1610/13 and B1615/14 may be output at this time, but they are not related to this check.

B -- REPLACE FRONT AIRBAG SENSOR RH
A -- REPLACE CENTER AIRBAG SENSOR ASSEMBLY
C -- USE SIMULATION METHOD TO CHECK
