Front Passenger Side Power Window Switch Power Source Circuit

WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM (w/o Jam Protection Function): Front Passenger Side Power Window Switch Power Source Circuit

Front Passenger Side Power Window Switch Power Source Circuit

DESCRIPTION

This circuit supplies power to operate the power window regulator switch assembly (Front RH).

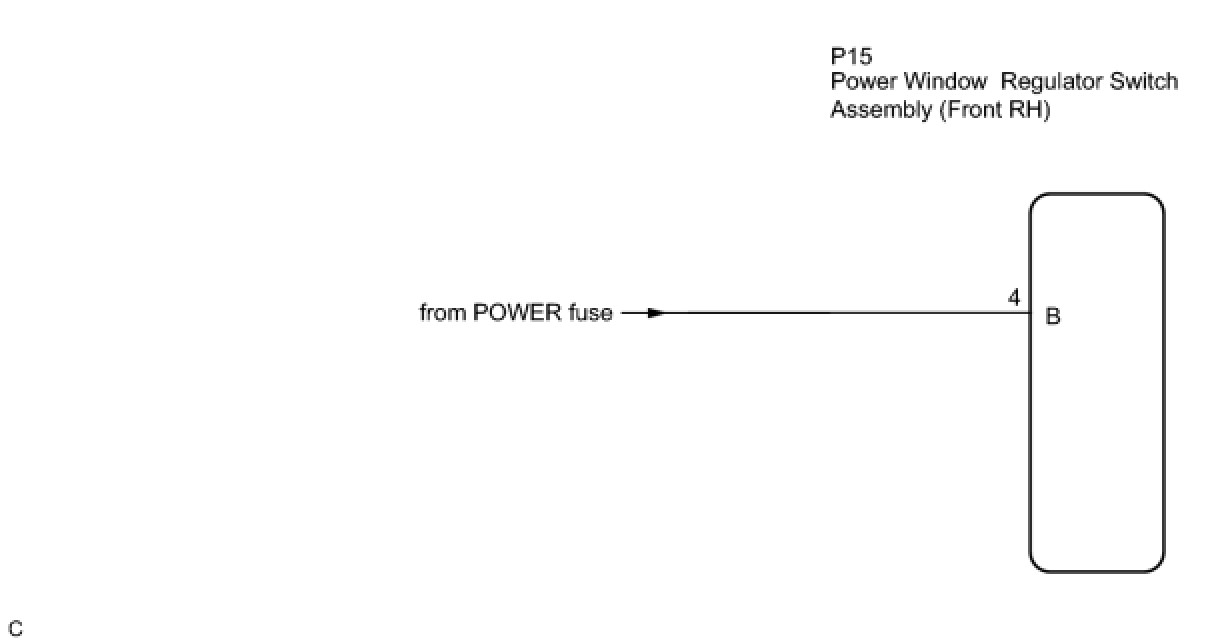

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK WIRE HARNESS (POWER WINDOW REGULATOR SWITCH - BATTERY AND BODY GROUND)





(a) Disconnect the P15 connector.
(b) Measure the voltage according to the value(s) in the table below.
Standard voltage:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
