Front Passenger Side Power Window Motor Circuit

WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM (w/o Jam Protection Function): Front Passenger Side Power Window Motor Circuit

Front Passenger Side Power Window Motor Circuit

DESCRIPTION

This circuit transmits signals from the power window regulator switch assembly (Front RH) to the power window regulator motor (Front RH).

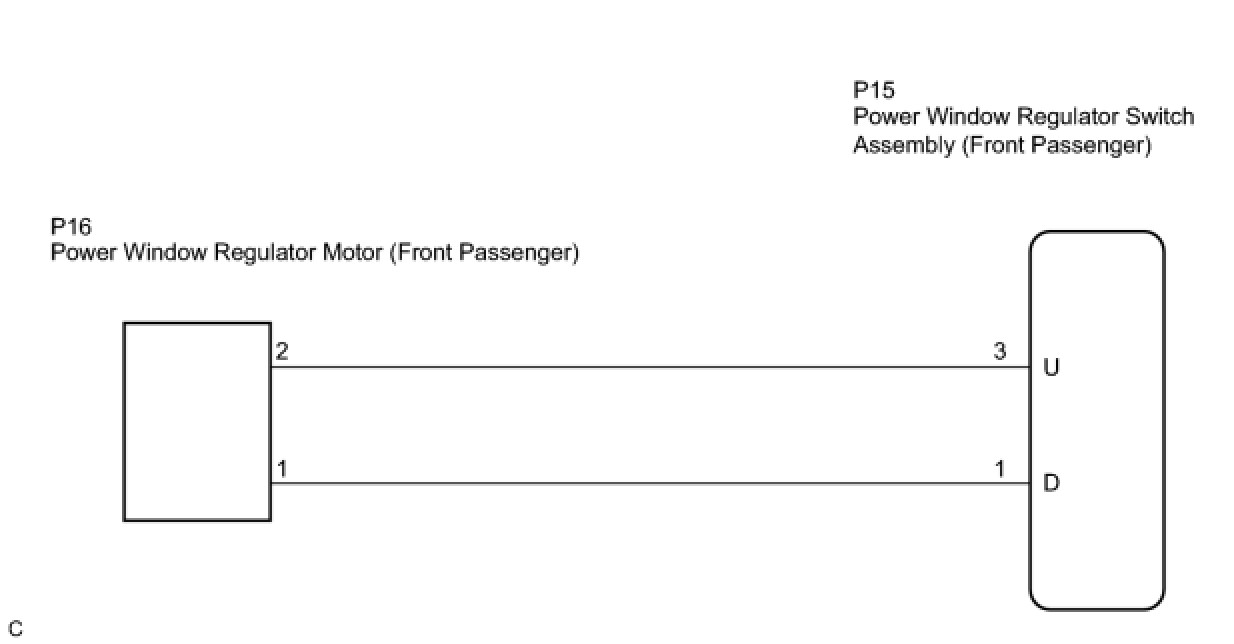

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT POWER WINDOW REGULATOR MOTOR





(a) Remove the power window motor.

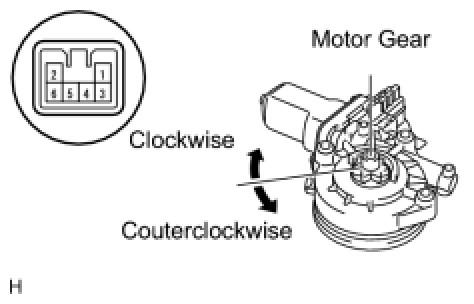

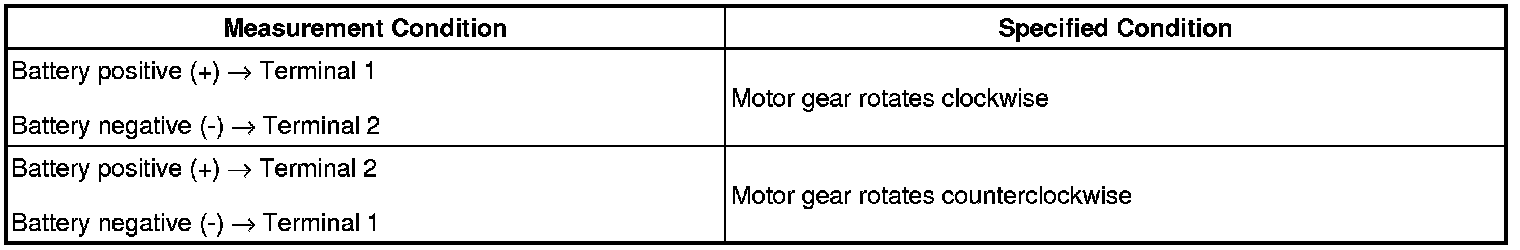

(b) Apply battery voltage to the motor connector according to the table below.
NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.

Standard:






NG -- REPLACE POWER WINDOW REGULATOR MOTOR
OK -- Continue to next step.
2. CHECK WIRE HARNESS (WINDOW REGULATOR MOTOR - POWER WINDOW REGULATOR SWITCH)

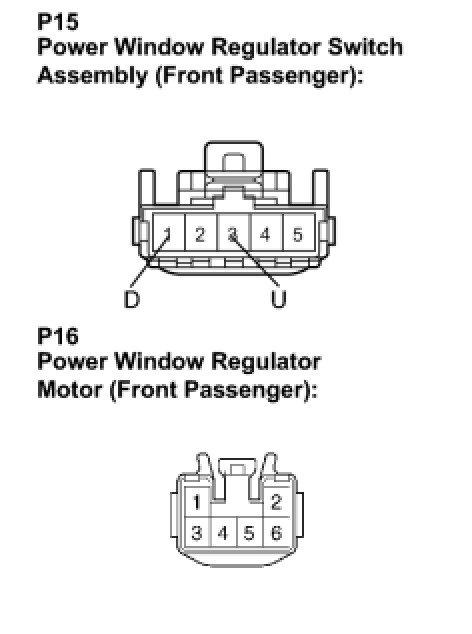

(a) Disconnect the P15 and P16 connectors.

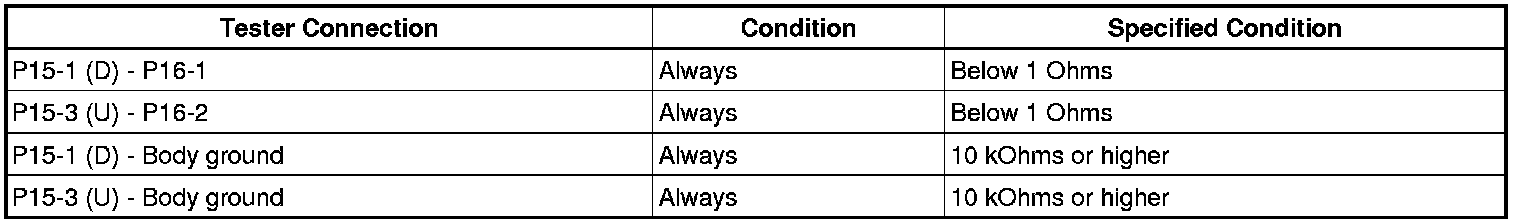

(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
