Driver Side Power Window Motor Circuit

WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM (w/o Jam Protection Function): Driver Side Power Window Motor Circuit

Driver Side Power Window Motor Circuit

DESCRIPTION

This circuit transmits signals from the power window regulator master switch assembly to the power window regulator motor (Front LH).

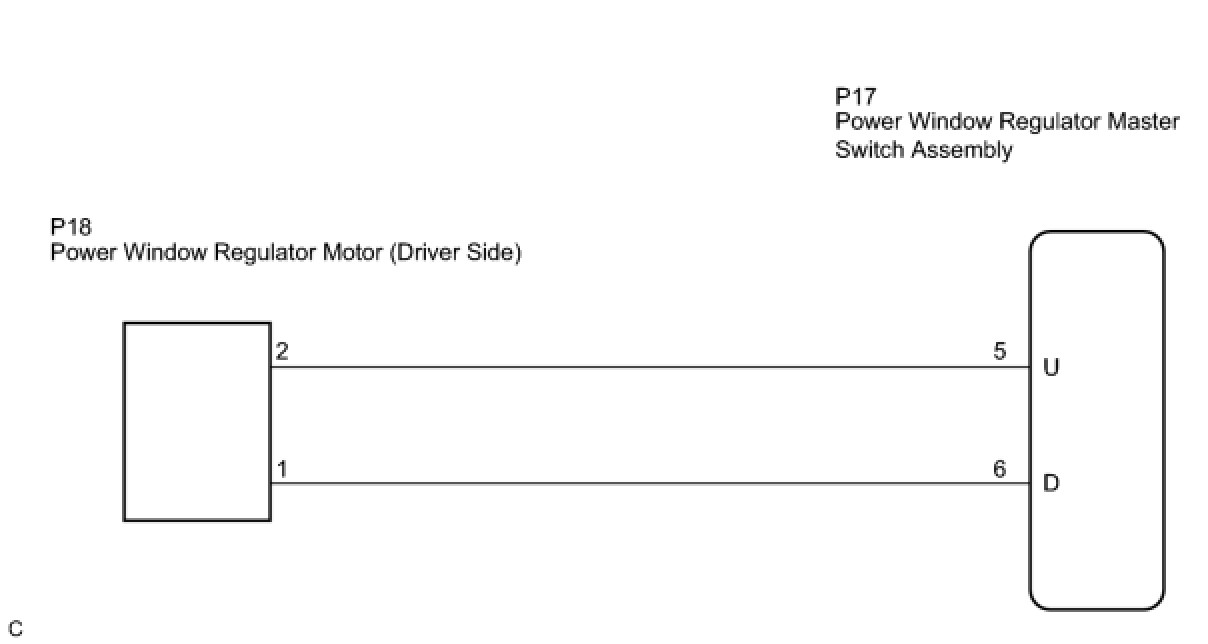

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

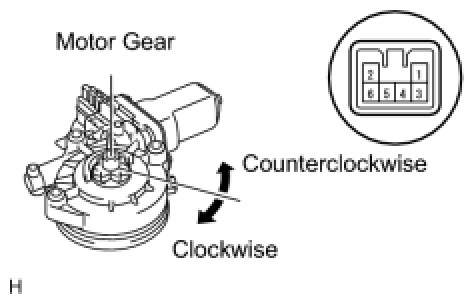

1. INSPECT POWER WINDOW REGULATOR MOTOR





(a) Remove the power window motor.

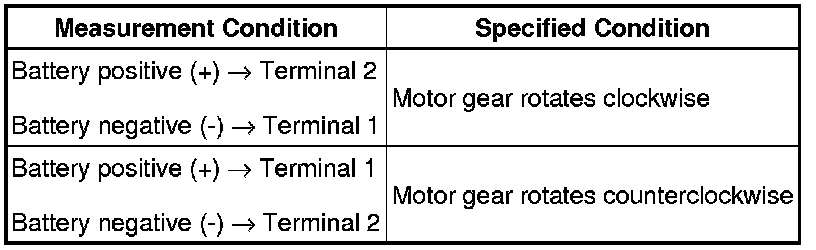

(1) Apply battery voltage to the motor connector according to the table below.
NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.

Standard:






NG -- REPLACE POWER WINDOW REGULATOR MOTOR
OK -- Continue to next step.
2. CHECK WIRE HARNESS (WINDOW REGULATOR MOTOR - WINDOW REGULATOR MASTER SWITCH)

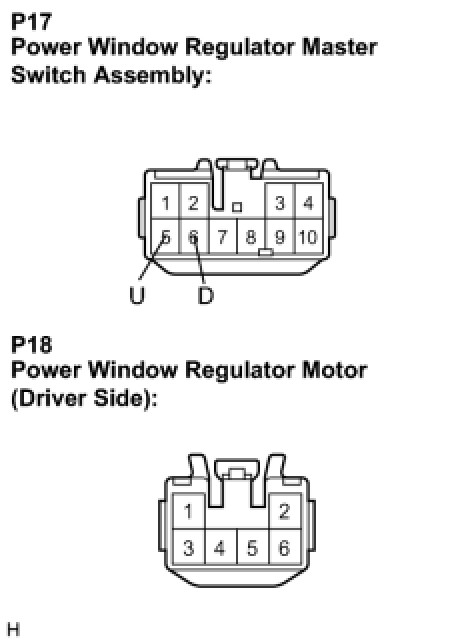

(a) Disconnect the P17 and P18 connectors.

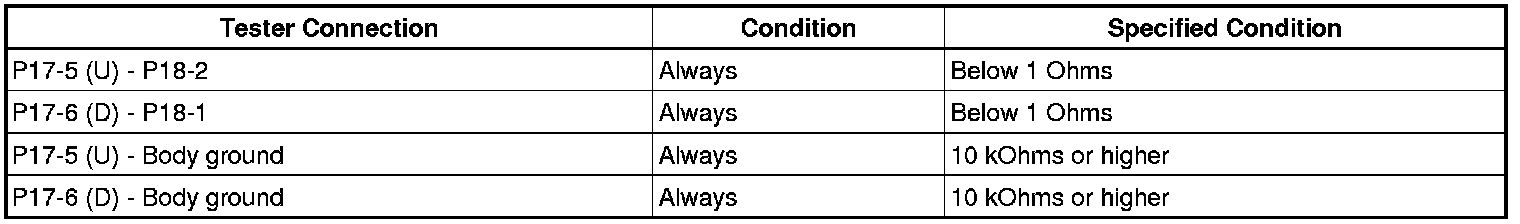

(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
