Power Window Control System (w/o Jam Protection Function)

WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM (w/o Jam Protection Function): TERMINALS OF ECU

TERMINALS OF ECU

1. POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

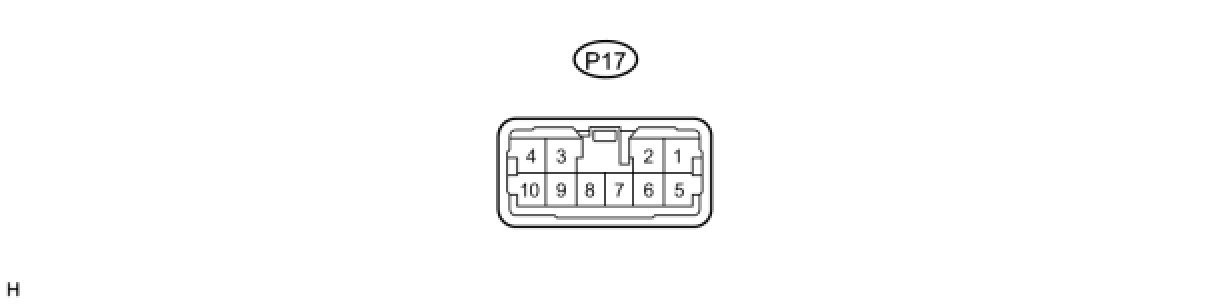

(a) Disconnect the P17 switch connector.
(b) Measure the voltage and resistance of each terminal according to the value(s) in the table below.










If the result is not as specified, there may be a malfunction in the wire harness.
(c) Reconnect the P17 switch connector and reset the power window motor.

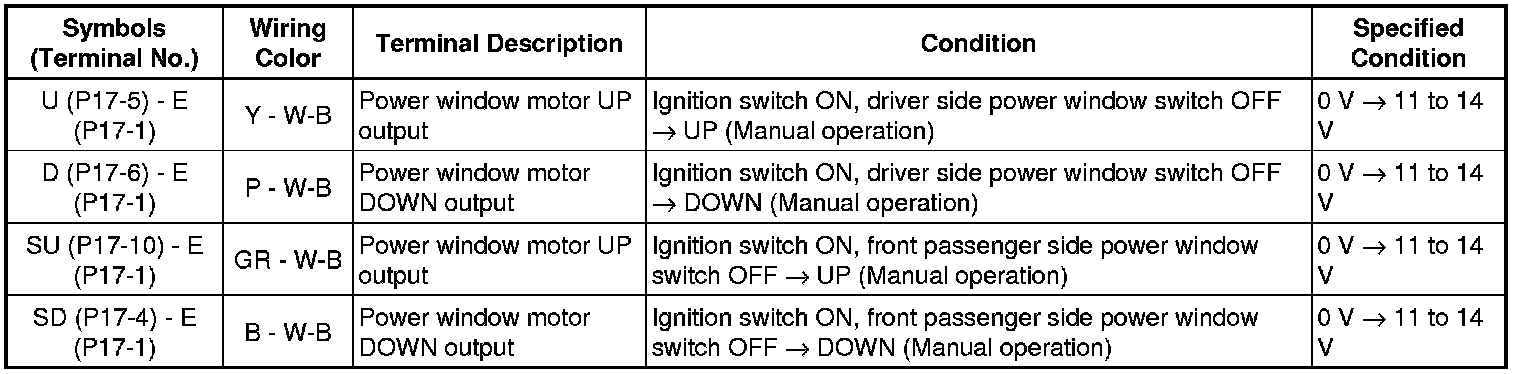

(d) Measure the voltage according to the value(s) in the table below.





If the result is not as specified, there may be a malfunction in the wire harness.
2. CHECK POWER WINDOW REGULATOR SWITCH ASSEMBLY (FRONT PASSENGER)

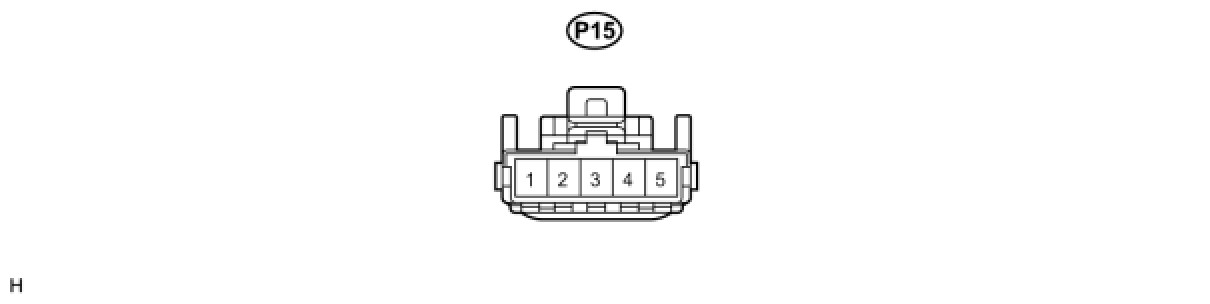

(a) Disconnect the P15 switch connector.
(b) Measure the voltage according to the value(s) in the table below.





If the result is not as specified, there may be a malfunction in the wire harness.
(c) Reconnect the P15 switch connector and reset the power window motor.

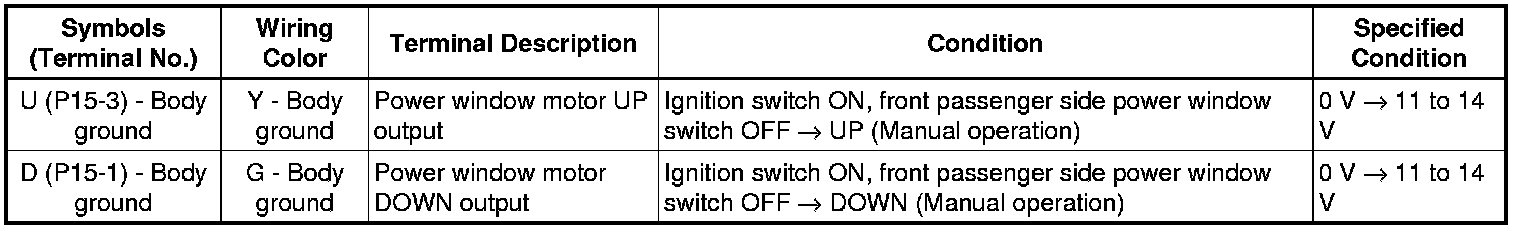

(d) Measure the voltage according to the value(s) in the table below.





If the result is not as specified, the power window regulator switch assembly may have a malfunction.
