Removal

E350 MANUAL TRANSAXLE: FRONT DIFFERENTIAL OIL SEAL: REMOVAL

REMOVAL

1. DRAIN MANUAL TRANSAXLE OIL
(a) Remove the filler plug and gasket.
(b) Remove the drain plug and gasket, and drain the oil.
(c) Install the drain plug.
2. REMOVE FRONT WHEEL
3. REMOVE ENGINE UNDER COVER LH
4. REMOVE ENGINE UNDER COVER RH
5. REMOVE FRONT DRIVE SHAFT ASSEMBLY LH
(a) Remove the drive shaft Removal.
6. REMOVE FRONT DRIVE SHAFT ASSEMBLY RH
(a) Remove the drive shaft Removal.

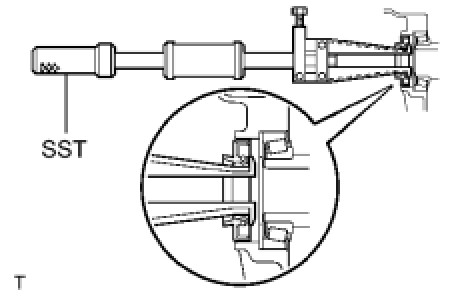

7. REMOVE TRANSMISSION CASE OIL SEAL
(a) Using SST, tap out the oil seal.
SST: 09308-00010

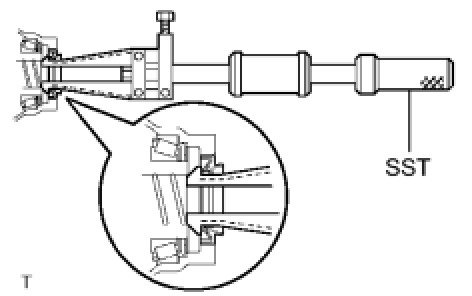

8. REMOVE FRONT TRANSAXLE CASE COVER OIL SEAL
(a) Using SST, tap out the oil seal.
SST: 09308-00010
