CLUTCH: CLUTCH PEDAL: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY LOWER Removal

3. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY UPPER Removal

4. DISCONNECT CONNECTOR
(a) Disconnect the clutch pedal switch connector.
(b) Disconnect the clutch switch connector.
5. REMOVE CLUTCH PEDAL SPRING

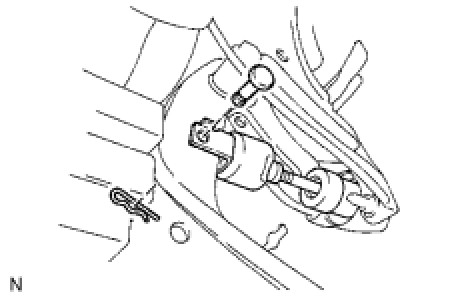

6. REMOVE CLUTCH MASTER CYLINDER PUSH ROD CLEVIS HOLE PIN
(a) Remove the clip and hole pin.






7. REMOVE CLUTCH PEDAL SUPPORT SUB-ASSEMBLY
(a) Remove the 2 nuts, bolt and clutch pedal support.
