Removal

CLUTCH: CLUTCH RELEASE CYLINDER: REMOVAL

REMOVAL





1. DISCONNECT CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE TUBE

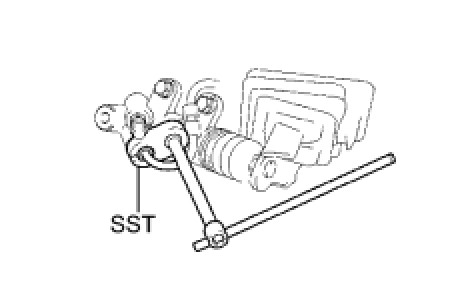

(a) Using SST, disconnect the flexible hose tube.
SST: 09023-00101
NOTE: Use a container to catch the fluid.





2. REMOVE CLUTCH RELEASE CYLINDER ASSEMBLY

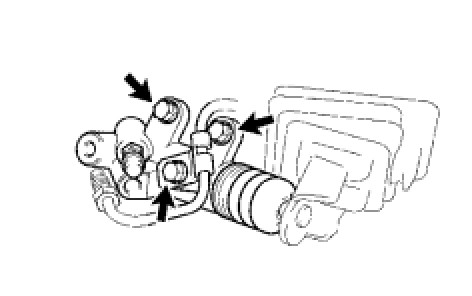

(a) Remove the 3 bolts and clutch release cylinder.
