CLUTCH: CLUTCH RELEASE CYLINDER: INSTALLATION

INSTALLATION





1. INSTALL CLUTCH RELEASE CYLINDER ASSEMBLY

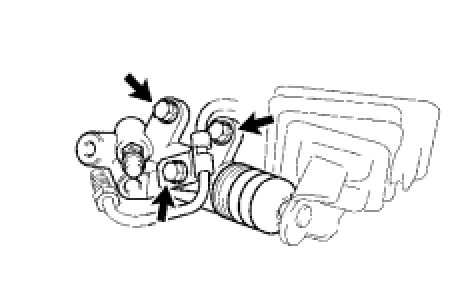

(a) Install the clutch release cylinder with the 2 bolts.
Torque: 12 Nm (120 kgf-cm, 9 ft-lbf)
(b) Install the flexible hose tube with the bolt.
Torque: 18 Nm (184 kgf-cm, 13 ft-lbf)






2. CONNECT CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE TUBE
(a) Using SST, connect the flexible hose tube.
SST: 09023-00101
Torque: 15 Nm (155 kgf-cm, 11 ft-lbf)
3. BLEED AIR FROM CLUTCH PIPE LINE
(a) Fill the brake reservoir with brake fluid and bleed air from the clutch system.
Torque: 8.4 Nm (85 kgf-cm, 74 in-lbf)
4. INSPECT FOR CLUTCH FLUID LEAK
