Installation

U241E AUTOMATIC TRANSAXLE: TRANSMISSION WIRE: INSTALLATION

INSTALLATION

1. INSTALL TRANSMISSION WIRE






(a) Coat a new O-ring and install it to the wire.

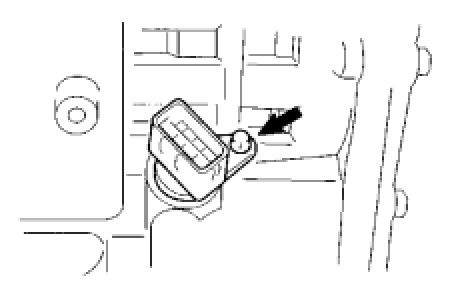

(b) Install the wire with the bolt.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
2. CONNECT TRANSMISSION WIRE

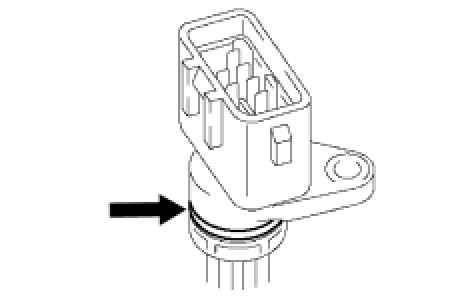

(a) Coat a new O-ring with ATF and install it to the ATF temperature sensor.

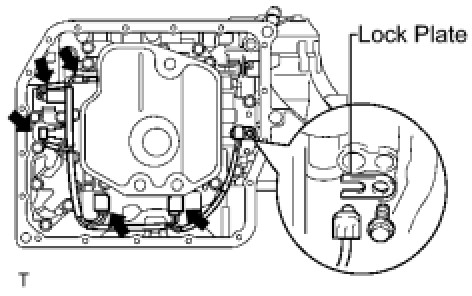

(b) Install the ATF temperature sensor with the lock plate and bolt.
Torque: 6.6 Nm (67 kgf-cm, 58 in-lbf)
(c) Connect the 5 solenoid valve connectors.
3. INSTALL AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY

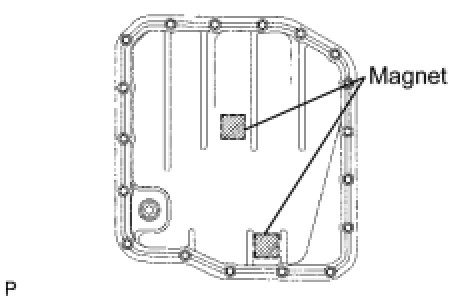

(a) Install the 2 magnets in the oil pan.
(b) Apply seal packing or equivalent to the 18 bolts.
Seal packing:
Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent
NOTE: Apply seal packing or equivalent to the bolts and tighten them within 10 minutes after application because the bolts should be seal bolts.

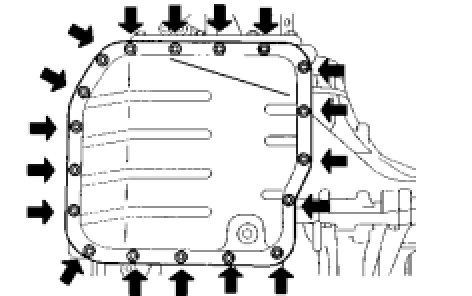

(c) Install a new gasket and the oil pan to the transaxle case with the 18 bolts.
Torque: 7.8 Nm (80 kgf-cm, 69 in-lbf)
4. INSTALL ENGINE UNDER COVER LH
5. ADD AUTOMATIC TRANSAXLE FLUID
Fluid type:
Toyota Genuine ATF WS
Standard capacity:
3.5 liters (3.7 US qts, 3.1 Imp. qts)
6. INSPECT AUTOMATIC TRANSAXLE FLUID
(a) Inspect the fluid Procedures.
7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
8. PERFORM INITIALIZATION
(a) Perform initialization Testing and Inspection.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
