Disassembly

U241E AUTOMATIC TRANSAXLE: FLOOR SHIFT ASSEMBLY: DISASSEMBLY

DISASSEMBLY

1. REMOVE SHIFT LOCK RELEASE BUTTON COVER

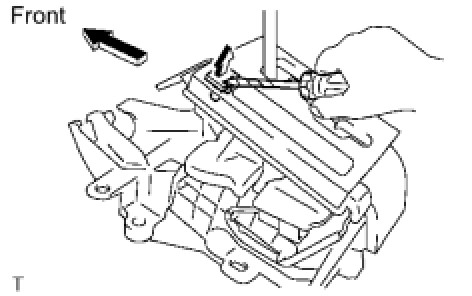

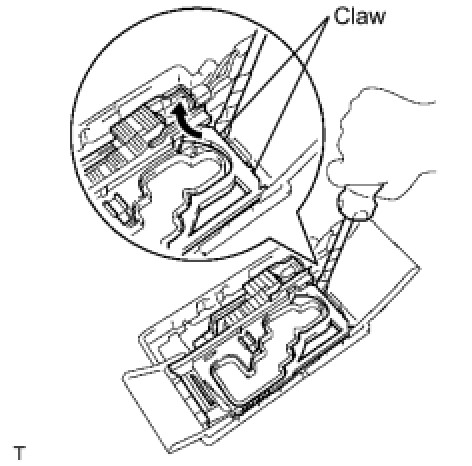

(a) Using a screwdriver, remove the cover from the position indicator housing.
HINT: Tape the screwdriver tip before use.

2. DISCONNECT INDICATOR LIGHT WIRE SUB-ASSEMBLY

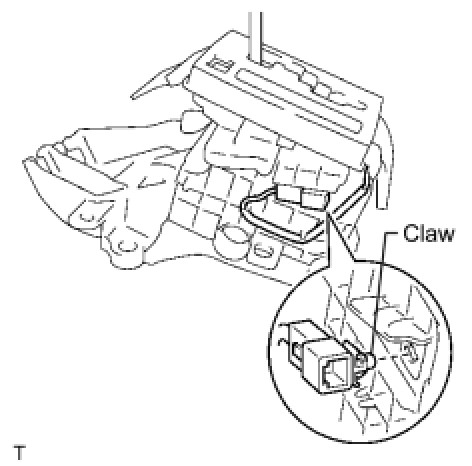

(a) Disconnect the wire connector from the floor shift.

3. REMOVE FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY
(a) Using a screwdriver, remove the housing from the shift lock control unit.
HINT: Tape the screwdriver tip before use.

4. REMOVE POSITION INDICATOR LIGHT GUIDE
(a) Using a screwdriver, remove the guide from the floor shift position indicator housing sub-assembly.
HINT: Tape the screwdriver tip before use.

5. REMOVE INDICATOR LIGHT WIRE SUB-ASSEMBLY

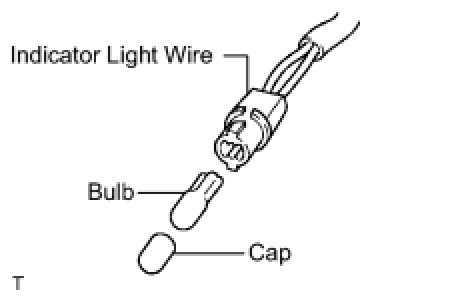

(a) Remove the wire from the position indicator light guide.

(b) Remove the bulb from the wire.
(c) Remove the cap from the bulb.

6. REMOVE POSITION INDICATOR SLIDE COVER

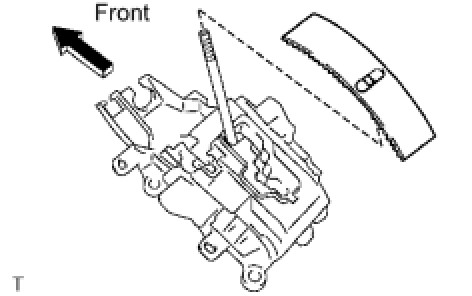

(a) Remove the cover from the shift lock control unit.

7. REMOVE POSITION INDICATOR SLIDE COVER

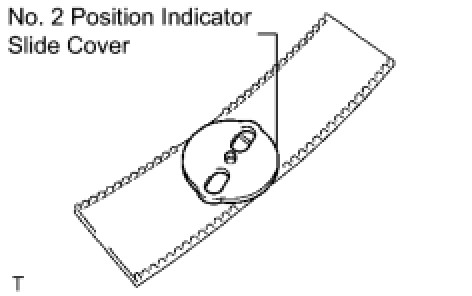

(a) Remove the cover from the position indicator slide cover.

8. REMOVE SHIFT LOCK RELEASE BUTTON

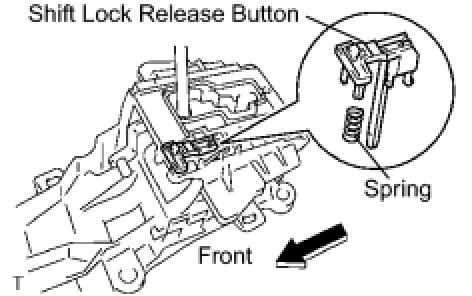

(a) Remove the button and spring from the shift lock control unit.

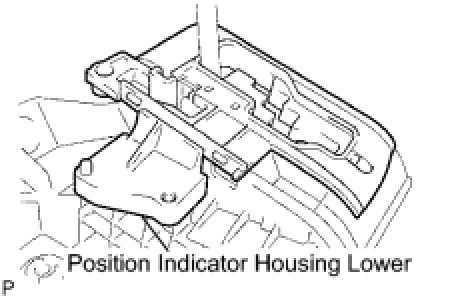

9. REMOVE POSITION INDICATOR HOUSING LOWER

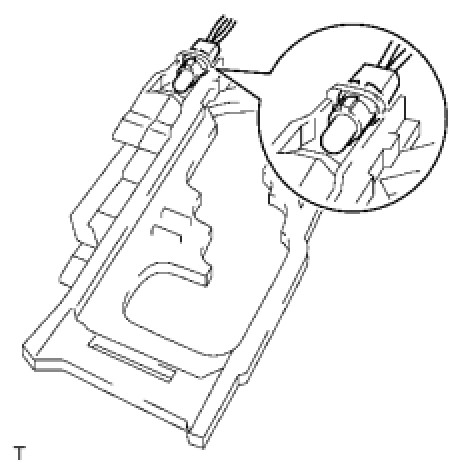

(a) Remove the housing from the shift lock control unit.

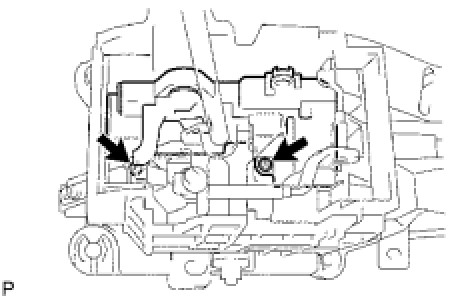

10. REMOVE SHIFT LOCK CONTROL ECU SUB-ASSEMBLY

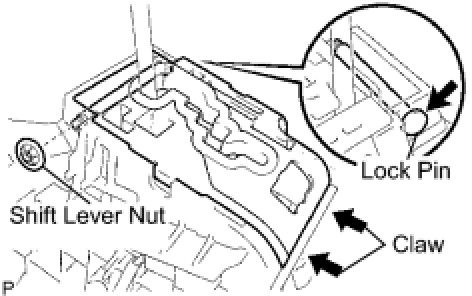

(a) Remove the shift lever nut and lock pin from the shift lock control unit.
(b) Remove the shift lever guide housing from the shift lock control unit.

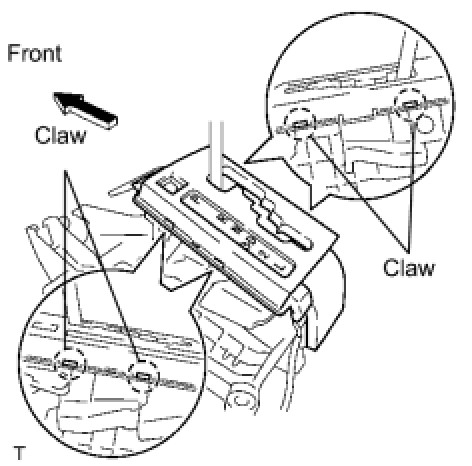

NOTE: First remove the shift lever nut and lock pin. Then disengage the 2 claws.
