Installation

U241E AUTOMATIC TRANSAXLE: TRANSMISSION REVOLUTION SENSOR: INSTALLATION

INSTALLATION

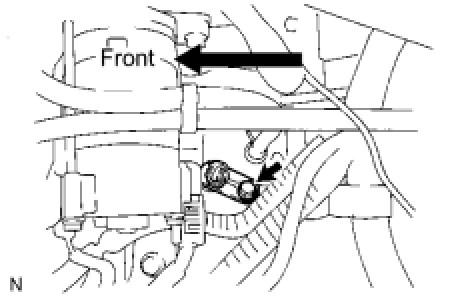

1. INSTALL SPEED SENSOR (NC SENSOR)
(a) Coat a new O-ring with ATF and install it to the sensor.
(b) Install the sensor with the bolt.
Torque: 11 Nm (112 kgf-cm, 8 ft-lbf)
(c) Connect the sensor connector.

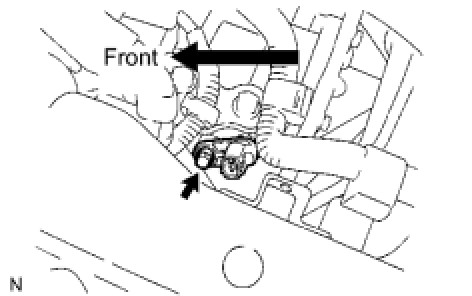

2. INSTALL SPEED SENSOR (NT SENSOR)
(a) Coat a new O-ring with ATF and install it to the sensor.
(b) Install the sensor with the bolt.
Torque: 11 Nm (112 kgf-cm, 8 ft-lbf)
(c) Connect the sensor connector.
3. INSTALL AIR CLEANER ASSEMBLY
Torque: 5.0 Nm (51 kgf-cm, 44 in-lbf)
4. INSTALL BATTERY CARRIER Installation

5. INSTALL BATTERY Installation

6. PERFORM INITIALIZATION
(a) Perform initialization Testing and Inspection.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
