Disposal

SUSPENSION: REAR SHOCK ABSORBER WITH COIL SPRING: DISPOSAL

DISPOSAL





1. DISPOSE OF REAR SHOCK ABSORBER
(a) Fully extend the shock absorber rod.

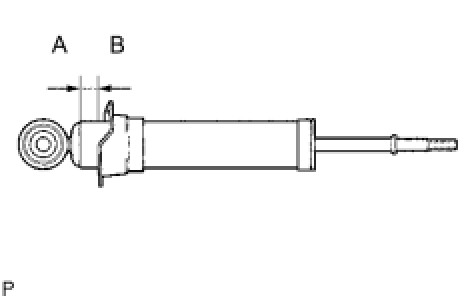

(b) Using a drill, make a hole in the cylinder somewhere between A and B as shown in the illustration to discharge the gas inside the cylinder.
CAUTION: Be careful when drilling because shards of metal may fly about, so always use the proper safety equipment.
NOTE: The discharged gas is colorless, odorless and non-poisonous.
