Installation

SUSPENSION: FRONT STABILIZER BAR: INSTALLATION

INSTALLATION

1. INSTALL FRONT STABILIZER BAR

2. INSTALL FRONT NO. 1 STABILIZER BAR BUSH

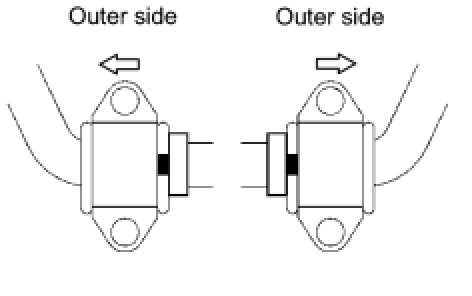

(a) Install the bushes to the outer side of the bush stopper on the stabilizer bar.
NOTE: Place the cutout of the stabilizer bush facing the rear side.

3. INSTALL FRONT NO. 1 STABILIZER BRACKET LH
(a) Install the No. 1 stabilizer bracket to the suspension crossmember with the 2 bolts.
Torque: 19 Nm (194 kgf-cm, 14 ft-lbf)
4. INSTALL FRONT NO. 1 STABILIZER BRACKET RH
HINT: Use the same procedures described for the LH side.

5. INSTALL FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY Installation

6. INSTALL NO. 1 HOOK Installation

7. CONNECT FRONT SUSPENSION NO. 1 LOWER ARM SUB-ASSEMBLY LH Installation

8. CONNECT FRONT SUSPENSION NO. 1 LOWER ARM SUB-ASSEMBLY RH
HINT: Use the same procedures described for LH side.

9. INSTALL FRONT STABILIZER LINK ASSEMBLY LH
10. INSTALL FRONT STABILIZER LINK ASSEMBLY RH
11. CONNECT PRESSURE FEED TUBE ASSEMBLY Installation

12. CONNECT TIE ROD END SUB-ASSEMBLY LH
(a) Connect the tie rod end LH Installation.
13. CONNECT TIE ROD END SUB-ASSEMBLY RH
HINT: Use the same procedures described for LH side.

14. INSTALL CENTER EXHAUST PIPE ASSEMBLY Installation

15. INSTALL FRONT FLOOR PANEL BRACE Installation

16. INSTALL FRONT WHEEL
17. CONNECT NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY
18. CONNECT NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY Installation

19. INSTALL COLUMN HOLE COVER SILENCER SHEET
(a) Install the silencer sheet Installation.
20. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY
21. ADD POWER STEERING FLUID
22. BLEED POWER STEERING FLUID
(a) Bleed the power steering fluid Power Steering System.
23. CHECK POWER STEERING FLUID LEVEL IN RESERVOIR
(a) Check the power steering fluid level in reservoir Power Steering System.
24. CHECK POWER STEERING FLUID LEAKS
25. INSPECT HOOD SUB-ASSEMBLY
26. ADJUST HOOD SUB-ASSEMBLY Adjustments

27. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
(a) Inspect and adjust the front wheel alignment Front Wheel Alignment.
28. INSTALL ENGINE UNDER COVER LH
29. INSTALL ENGINE UNDER COVER RH
