Steering Linkage

POWER STEERING: STEERING LINKAGE: INSPECTION

INSPECTION





1. INSPECT POWER STEERING RACK

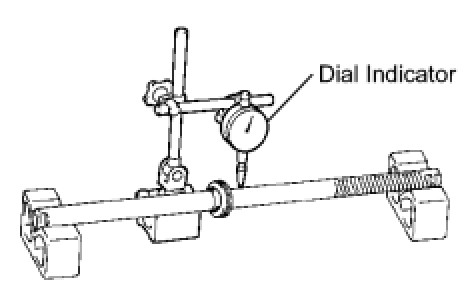

(a) Using a dial indicator, check for runout of the steering rack and teeth wear.
Maximum runout:
0.1 mm (0.004 in.)
If runout exceeds the maximum, replace the power steering rack.
NOTE: Make sure that the steering rack is placed horizontally.

(b) Check the rack surface for wear and damage.
If runout exceeds the maximum, replace the power steering link assembly.
