TIRE AND WHEEL: TIRE PRESSURE WARNING RESET SWITCH: INSTALLATION

INSTALLATION

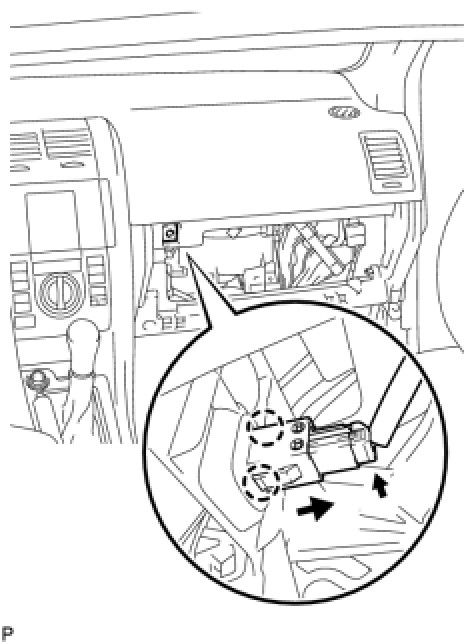

1. INSTALL TIRE PRESSURE WARNING RESET SWITCH






(a) Engage the 2 claws to install the tire pressure warning reset switch to the instrument panel assembly.
(b) Connect the connector.
2. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
HINT: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Testing and Inspection.

4. INSPECT TIRE PRESSURE WARNING SYSTEM
HINT:
Test Mode Procedure.
