Removal

OTHER SYSTEM: POWER POINT SOCKET: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) Removal

3. REMOVE FRONT CONSOLE PANEL UPPER Removal

4. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY UPPER Removal

5. REMOVE REAR CONSOLE BOX SUB-ASSEMBLY Removal

6. REMOVE POWER POINT SOCKET ASSEMBLY

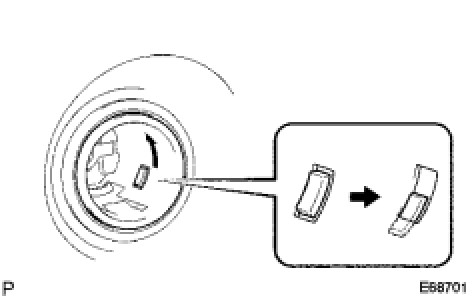

(a) Turn the socket in the direction as shown in the illustration, disengage the claw between the socket and the power point socket cover, and pull out the socket.

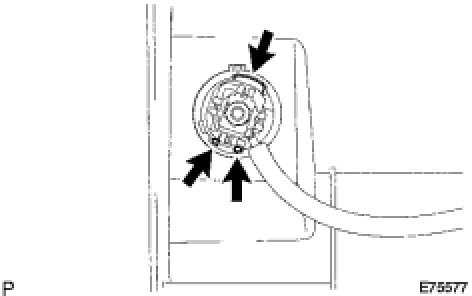

(b) Align the socket with the notch on the power point socket cover, and remove the power point socket.
