Torque Specifications








SERVICE SPECIFICATIONS: AIR CONDITIONING: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

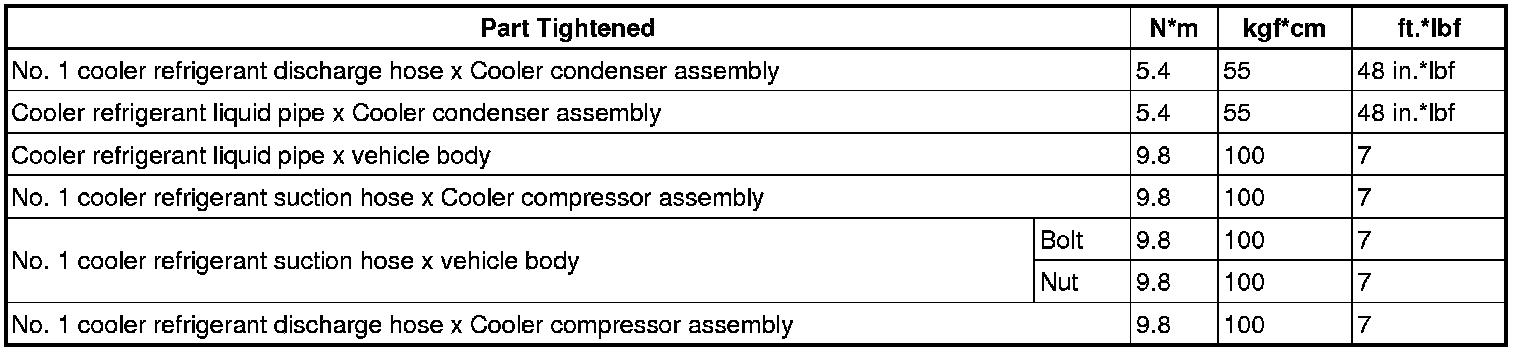

REFRIGERANT LINE:

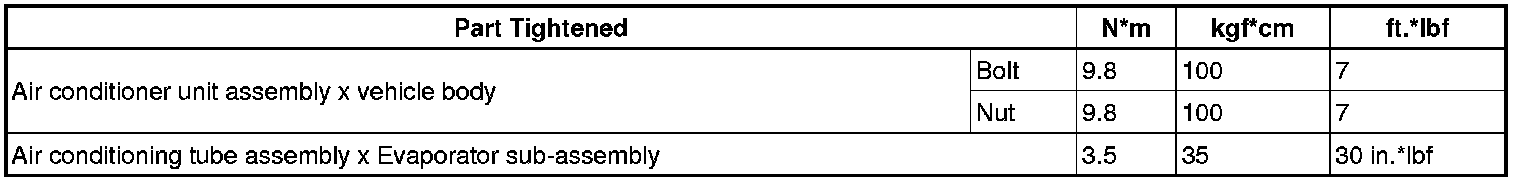

AIR CONDITIONING UNIT:






BLOWER UNIT:

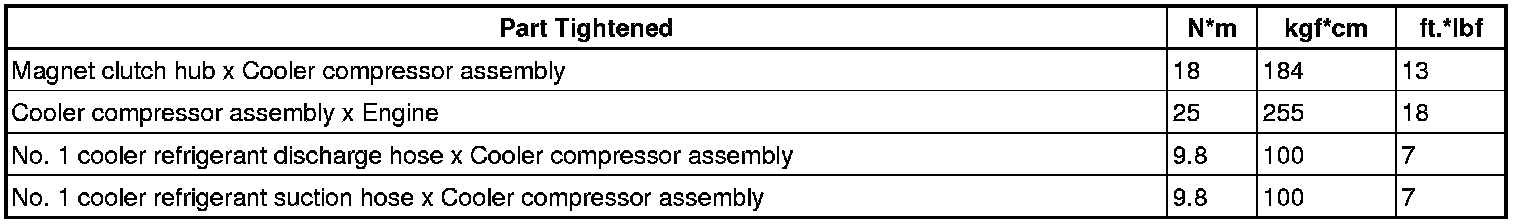

COMPRESSOR AND MAGNETIC CLUTCH:






CONDENSER:
