Torque Specifications








SERVICE SPECIFICATIONS: BRAKE: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

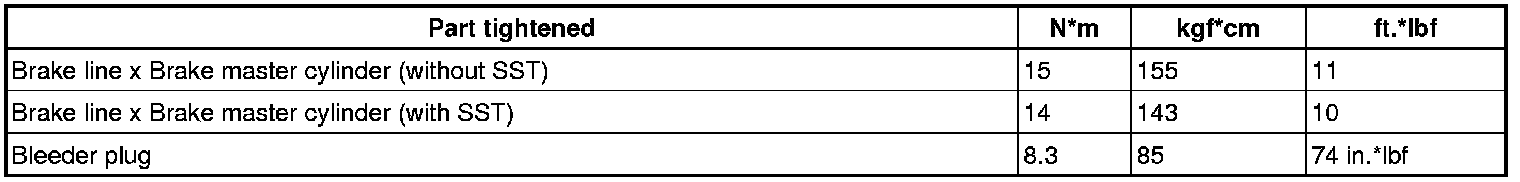

Brake fluid:

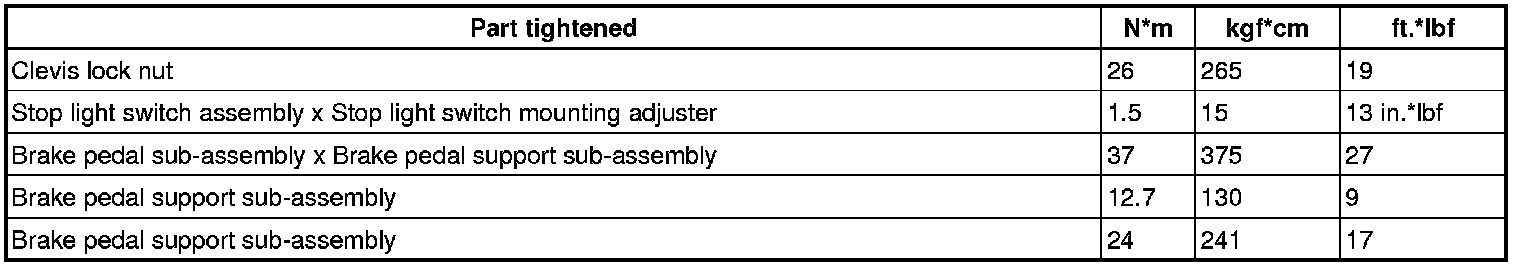

Brake pedal:

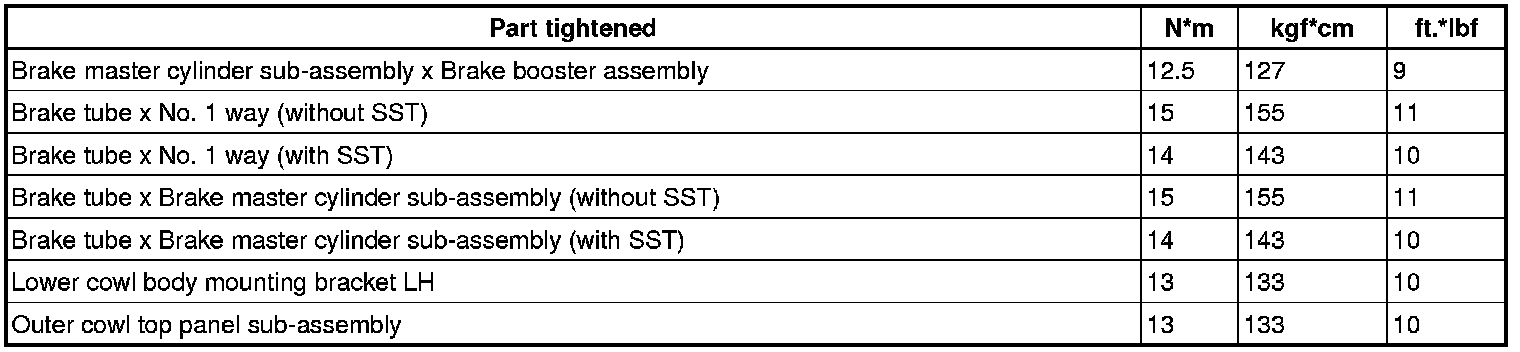

Brake master cylinder:

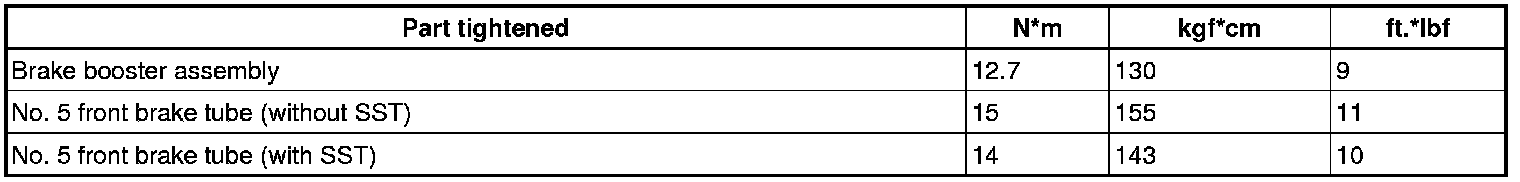

Brake booster:

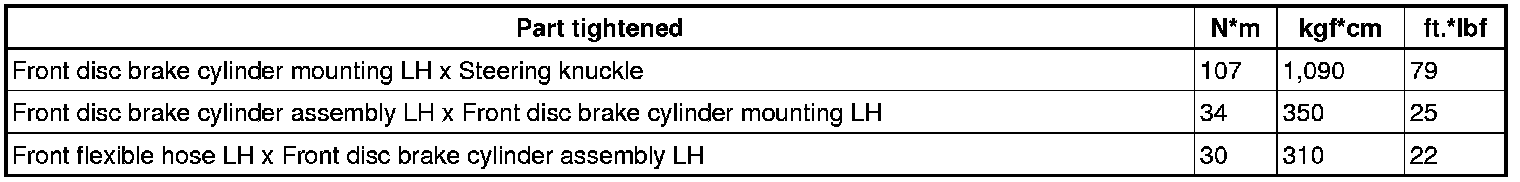

Front brake:

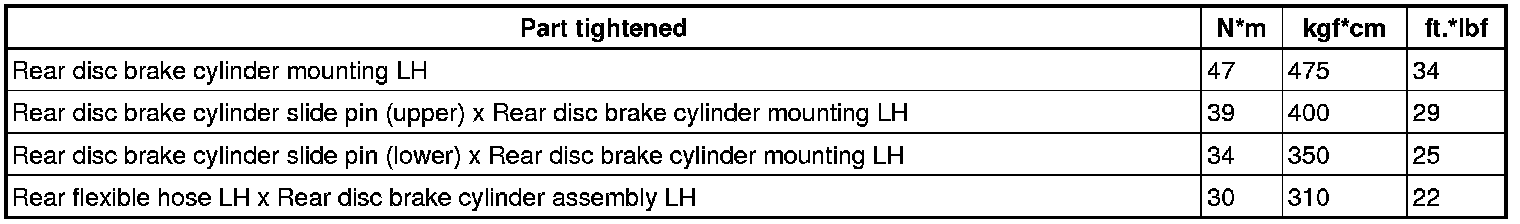

Rear brake:
