Home >> Scion >> 2008 >> tC L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Brakes and Traction Control >> Parking Brake System >> Torque Specifications

Torque Specifications








SERVICE SPECIFICATIONS: PARKING BRAKE: TORQUE SPECIFICATIONS

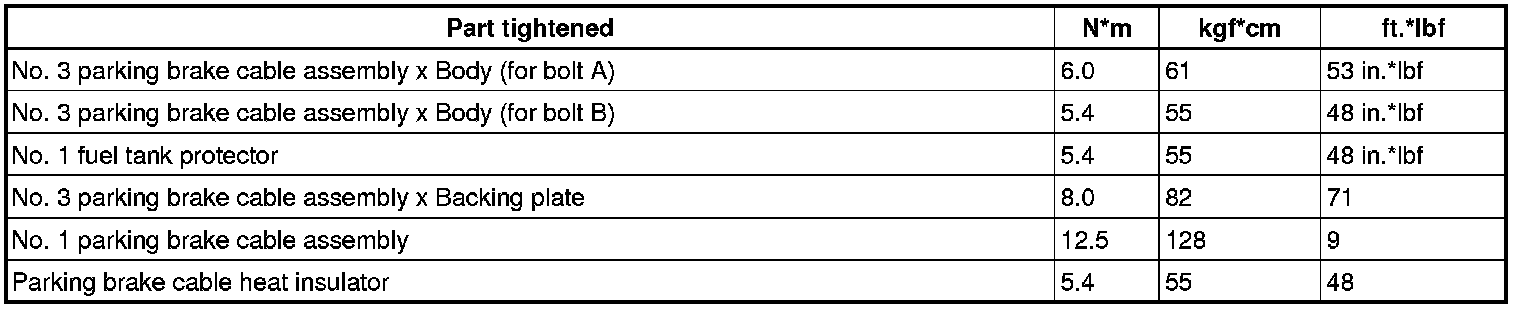

TORQUE SPECIFICATIONS

Parking brake system:






Parking brake lever:






Parking brake cable:
