Exterior








SERVICE SPECIFICATIONS: EXTERIOR: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

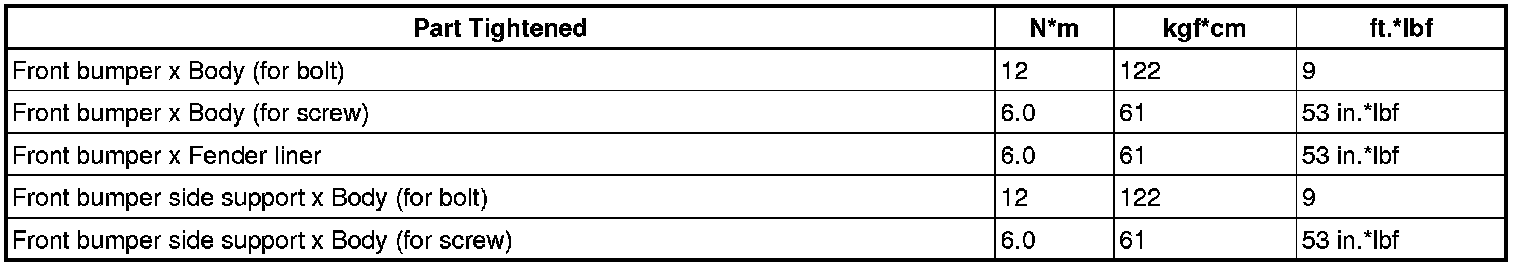

FRONT BUMPER:

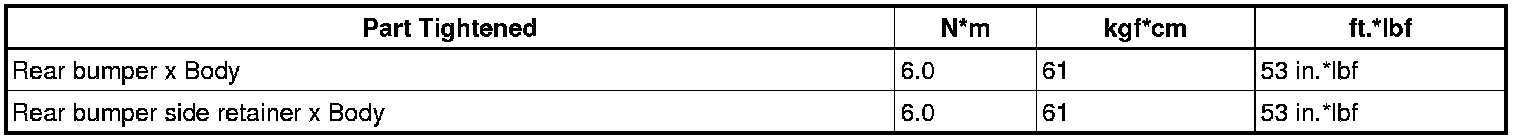

REAR BUMPER:
