Removal

U241E AUTOMATIC TRANSAXLE: TRANSMISSION REVOLUTION SENSOR: REMOVAL

REMOVAL

1. REMOVE BATTERY
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE BATTERY CARRIER Removal

3. REMOVE AIR CLEANER ASSEMBLY Removal







4. REMOVE SPEED SENSOR (NT SENSOR)
(a) Disconnect the sensor connector.
(b) Remove the bolt and sensor.

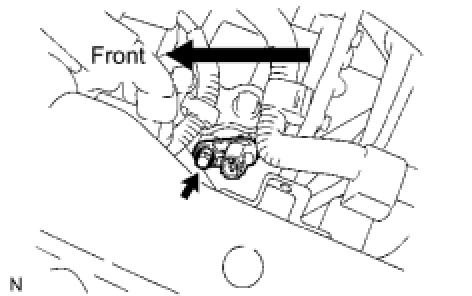

5. REMOVE SPEED SENSOR (NC SENSOR)
(a) Disconnect the sensor connector.
(b) Remove the bolt and sensor.
