Removal

U241E AUTOMATIC TRANSAXLE: PARK / NEUTRAL POSITION SWITCH: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE ENGINE UNDER COVER LH
3. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

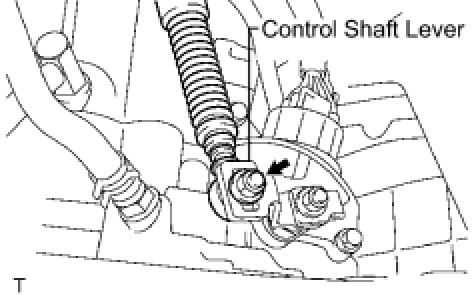

(a) Remove the nut from the control shaft lever.
(b) Disconnect the control cable from the control shaft lever.

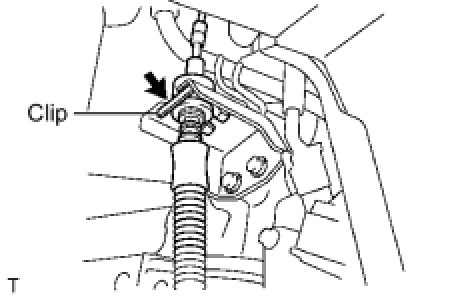

(c) Remove the clip and disconnect the control cable from the control cable bracket.
4. REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY

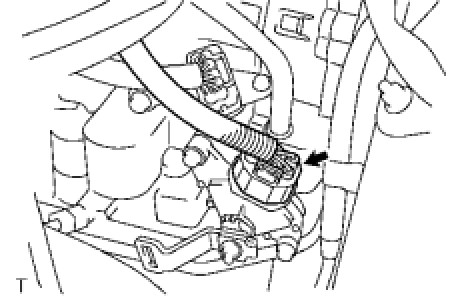

(a) Disconnect the switch connector.

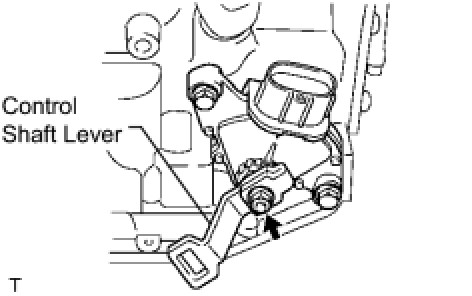

(b) Remove the nut, washer and control shaft lever.

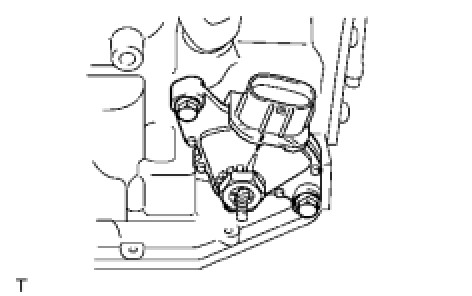

(c) Pry up the lock plate and remove the nut and lock plate.

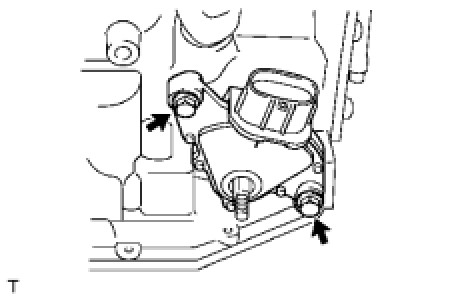

(d) Remove the 2 bolts and pull out the position switch.
