Removal

2AZ-FE EMISSION CONTROL: VACUUM SWITCHING VALVE: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

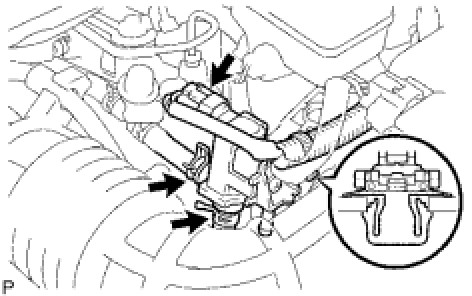

2. REMOVE PURGE VSV






(a) Disconnect the purge VSV connector.
(b) Remove the wire harness clamp.
(c) Disconnect the 2 purge line hoses from the vacuum switching valve.
(d) Remove the purge VSV from the air cleaner hose.
