Remote Switch: Testing and Inspection

AUDIO / VISUAL: STEERING PAD SWITCH: INSPECTION

INSPECTION

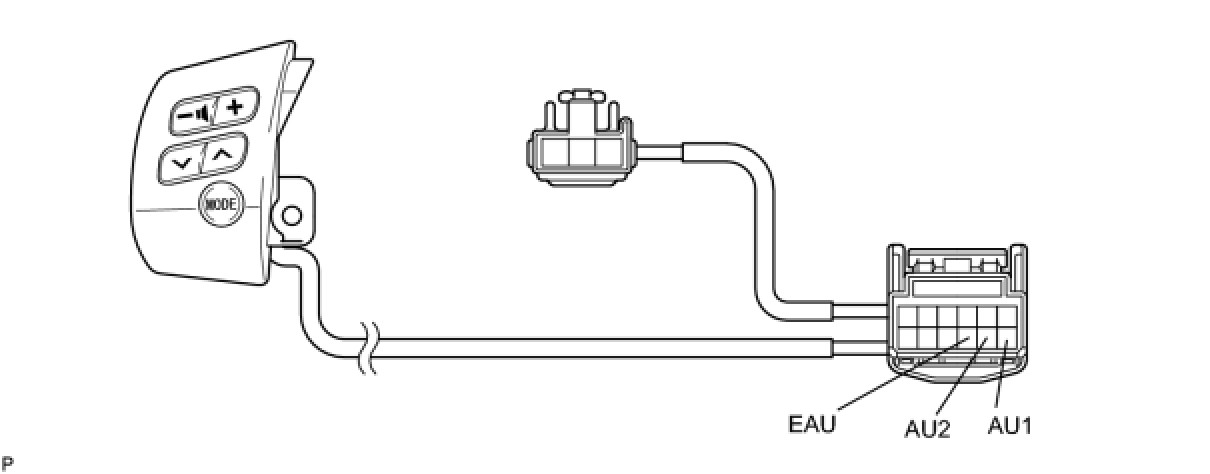

1. INSPECT STEERING PAD SWITCH LH
(a) Measure the resistance according to the values in the table below.

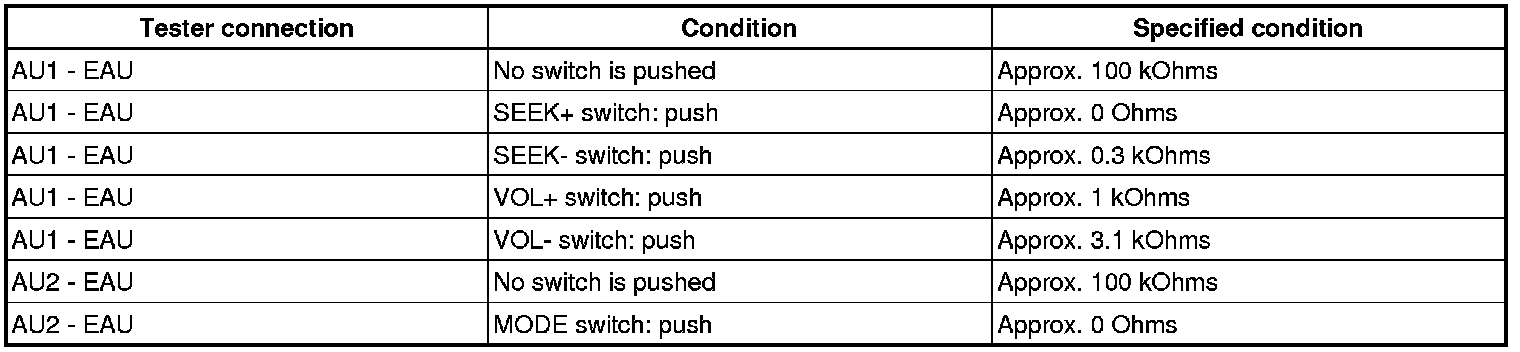

Standard resistance:





If the result is not as specified, replace the steering pad switch LH.
