Removal

SUPPLEMENTAL RESTRAINT SYSTEM: REAR AIRBAG SENSOR: REMOVAL

REMOVAL
CAUTION: Be sure to read the precautionary notices concerning the SRS airbag system before servicing it Service Precautions.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE TONNEAU COVER ASSEMBLY
3. REMOVE FRONT DOOR SCUFF PLATE LH Removal

4. REMOVE FRONT DOOR WEATHERSTRIP LH
5. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH Removal

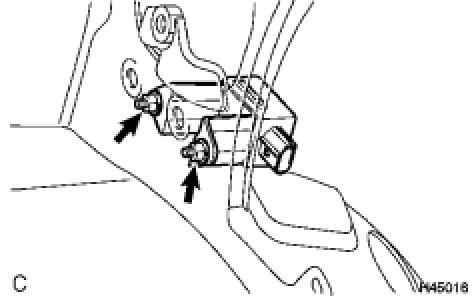

6. REMOVE AIRBAG SENSOR REAR LH
(a) Disconnect the connector.
(b) Remove the 2 nuts and airbag sensor.
