Scan Tool Testing and Procedures

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: DATA LIST / ACTIVE TEST

DATA LIST / ACTIVE TEST
HINT: By accessing the DATA LIST displayed on the intelligent tester, you can perform such functions as reading the values of switches and sensors without removing any parts. Reading the DATA LIST as the first step in troubleshooting is one method to save labor time.

1. DATA LIST FOR CENTER AIRBAG SENSOR ASSEMBLY






(a) Connect the intelligent tester to the DLC3.

(b) Turn the ignition switch to the ON position.
(c) Turn the tester on.
(d) Enter the following menus: DIAGNOSIS / OBD/MOBD / SRS AIRBAG / DATA LIST.
(e) Check the values by referring to the table below.

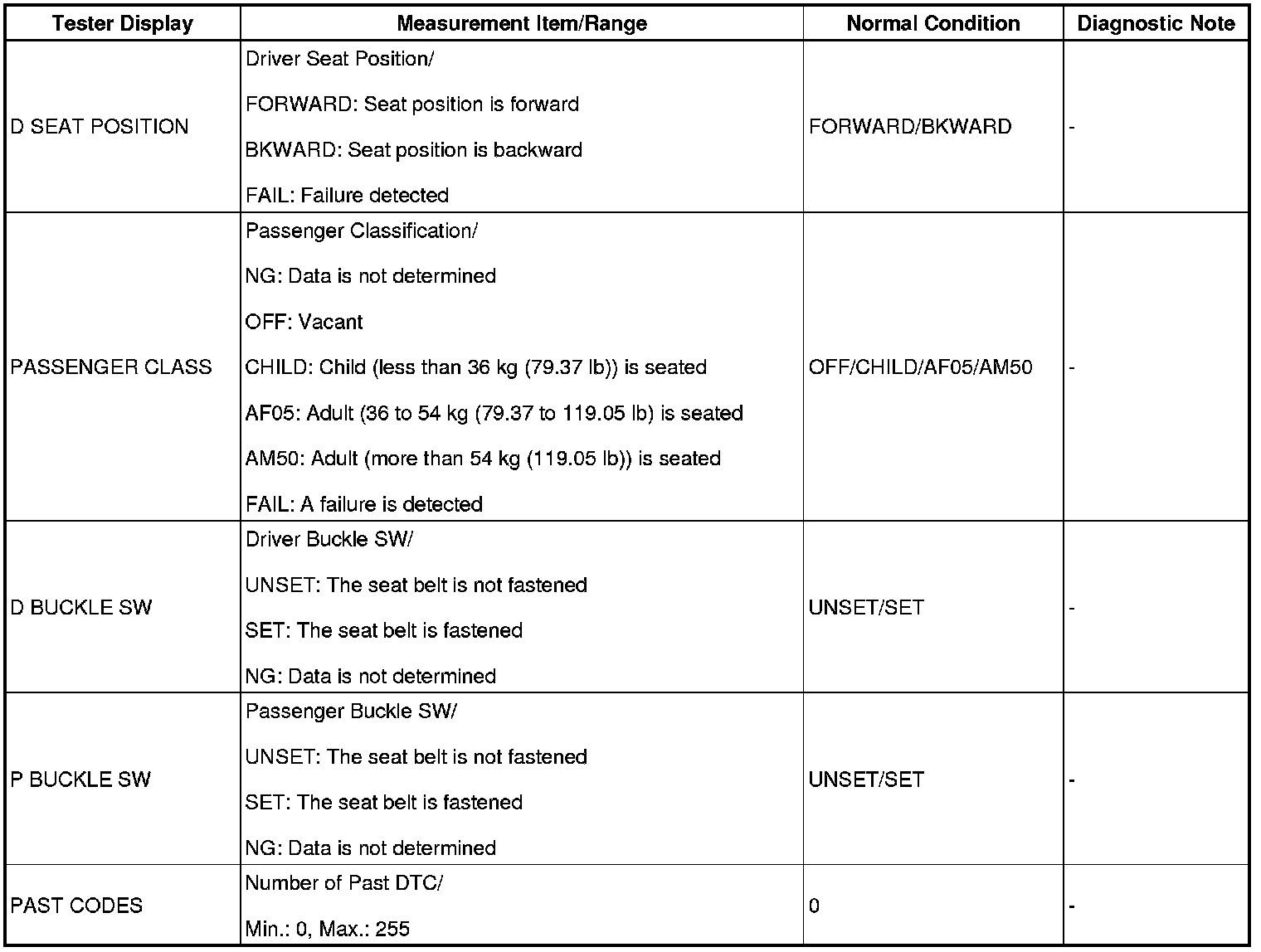

DATA LIST:

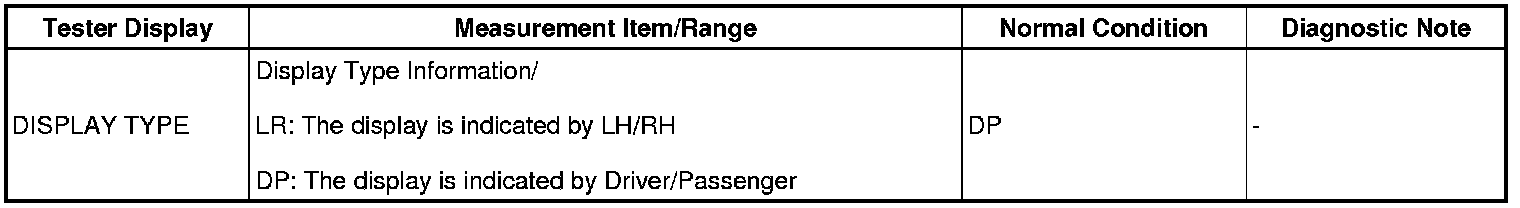

TYPE INFO:
