Removal

SUPPLEMENTAL RESTRAINT SYSTEM: CURTAIN SHIELD AIRBAG ASSEMBLY: REMOVAL

REMOVAL
CAUTION: Be sure to read the precautionary notices concerning the SRS airbag system before servicing it Service Precautions.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE ROOF HEADLINING ASSEMBLY
(a) Remove the roof headlining Removal.
3. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY LH





(a) Disconnect the connector.
NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.

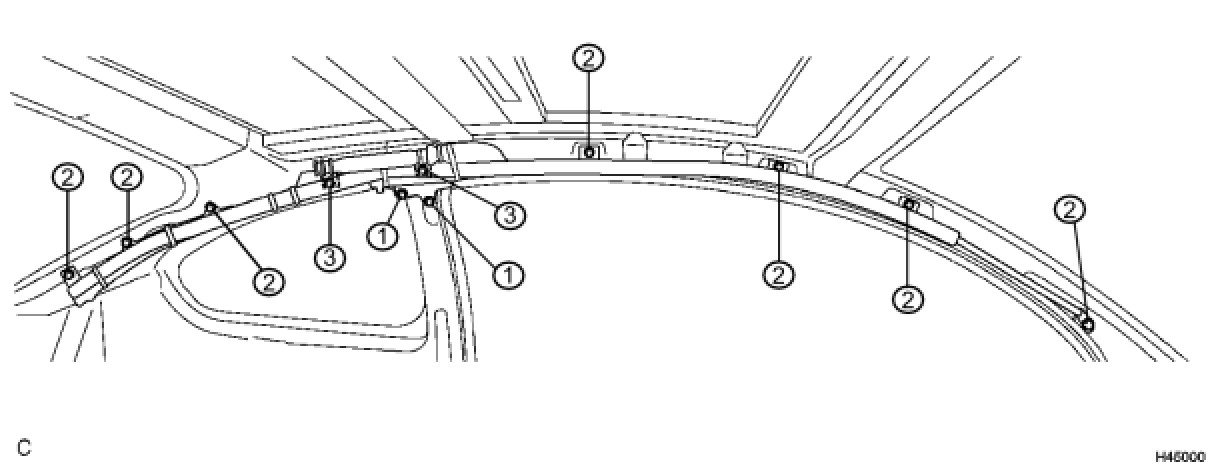

(b) Remove the 11 bolts and the curtain shield airbag assembly.
