Headlamp Relay: Testing and Inspection








LIGHTING: HEADLIGHT RELAY: INSPECTION

INSPECTION

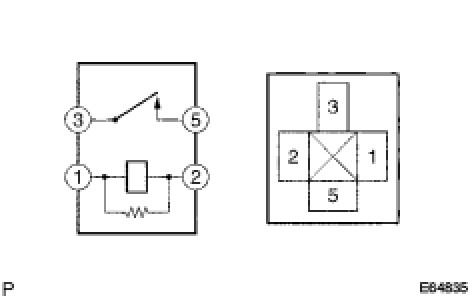

1. INSPECT HEADLIGHT RELAY

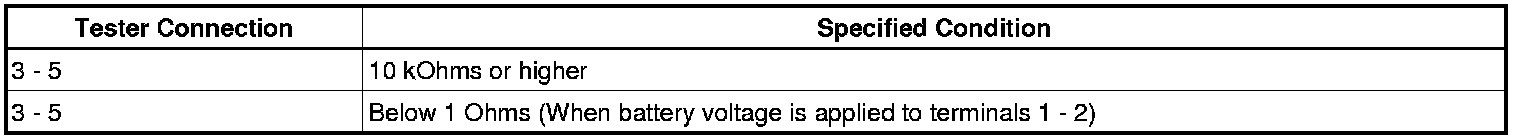

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:
