Blower Motor Relay: Testing and Inspection

AIR CONDITIONING: HEATER RELAY: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

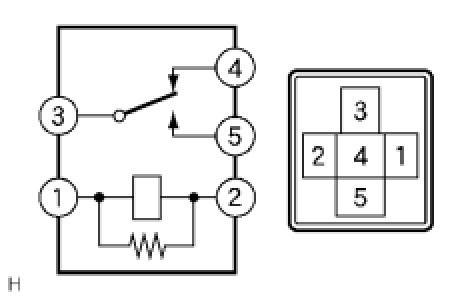

1. INSPECT HEATER RELAY (Marking: HTR)






(a) Remove the heater relay from the instrument panel junction block.

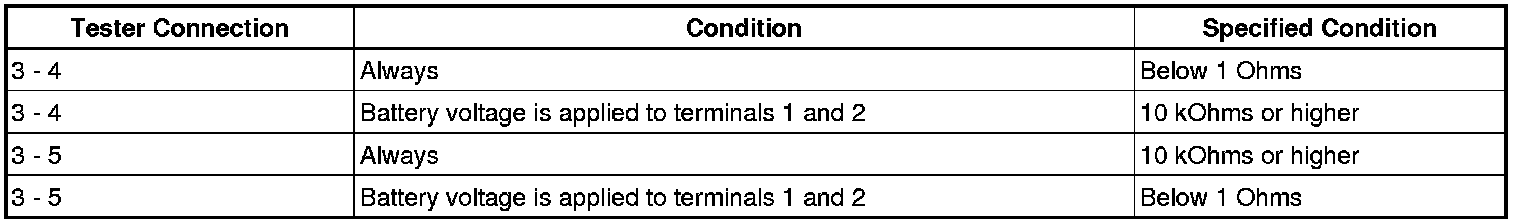

(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:





If the resistance is not as specified, replace the heater relay.
