Installation

2AZ-FE ENGINE CONTROL SYSTEM: ACCELERATOR PEDAL: INSTALLATION

INSTALLATION

1. INSTALL ACCELERATOR PEDAL

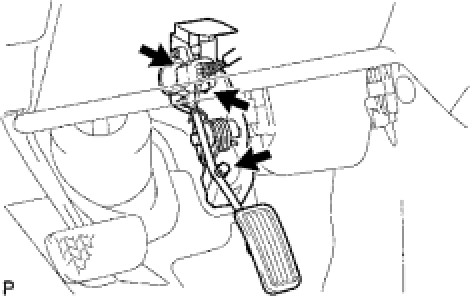

(a) Install the accelerator pedal with the 2 bolts.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
(b) Connect the accelerator pedal position sensor connector.
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
3. PERFORM INITIALIZATION
(a) Perform initialization Testing and Inspection.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
