Removal

2AZ-FE EMISSION CONTROL: VENTILATION VALVE: REMOVAL

REMOVAL

1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY Removal

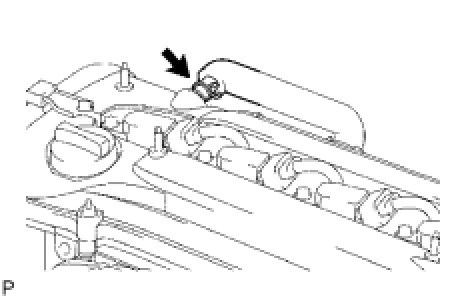

2. REMOVE VENTILATION VALVE SUB-ASSEMBLY






(a) Disconnect the No. 2 ventilation hose from the ventilation valve.






(b) Using a 22 mm deep socket wrench, remove the ventilation valve.
