Removal

2AZ-FE ENGINE CONTROL SYSTEM: CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE ENGINE COVER Removal

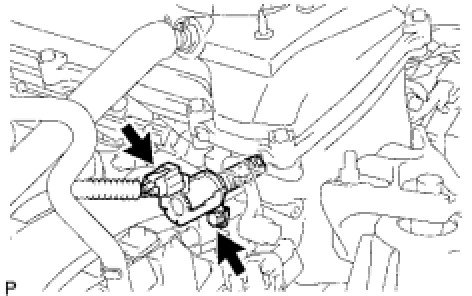

3. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY






(a) Disconnect the oil control valve connector.
(b) Remove the bolt and oil control valve.
