Symptom Related Diagnostic Procedures

2AZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: PROBLEM SYMPTOMS TABLE

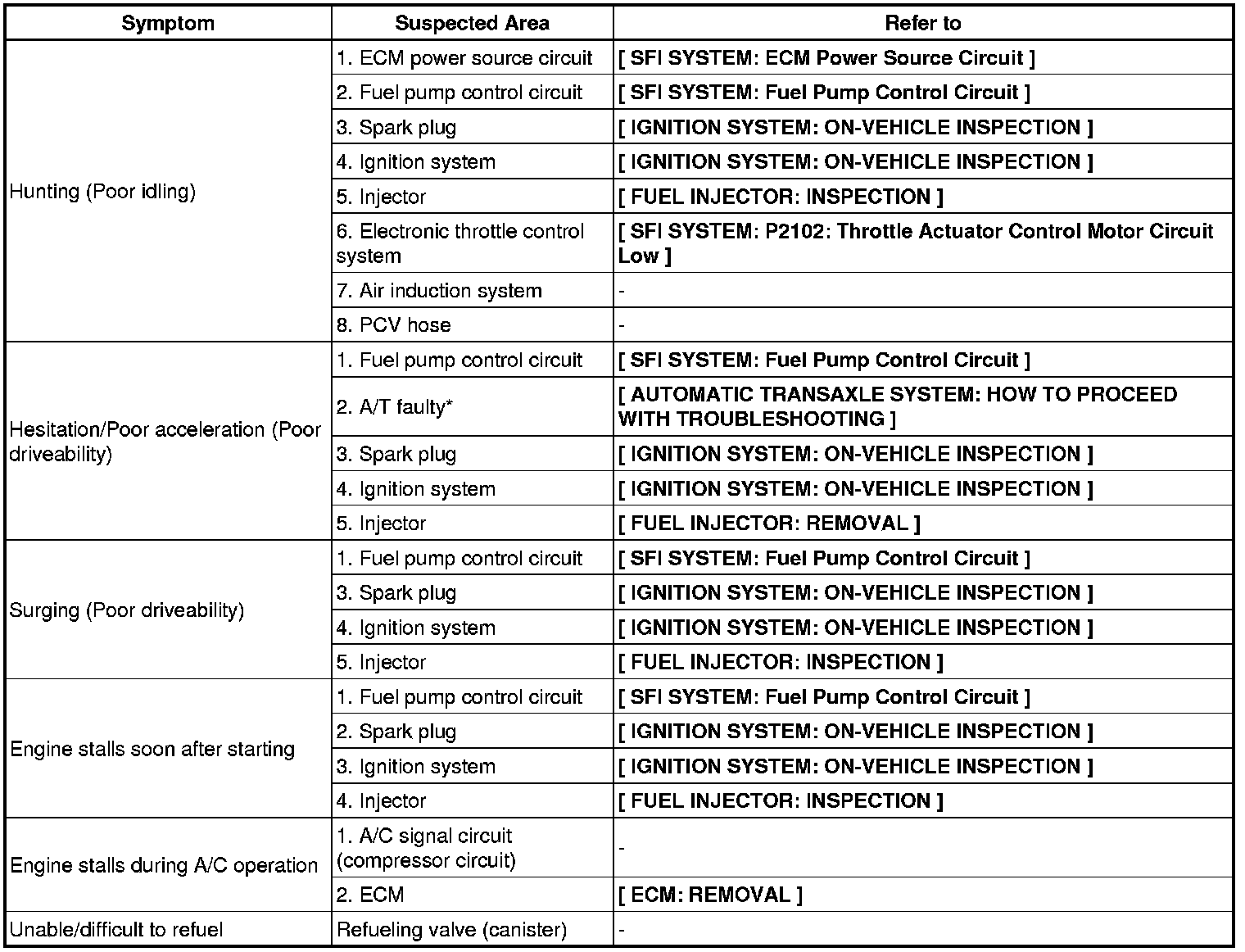

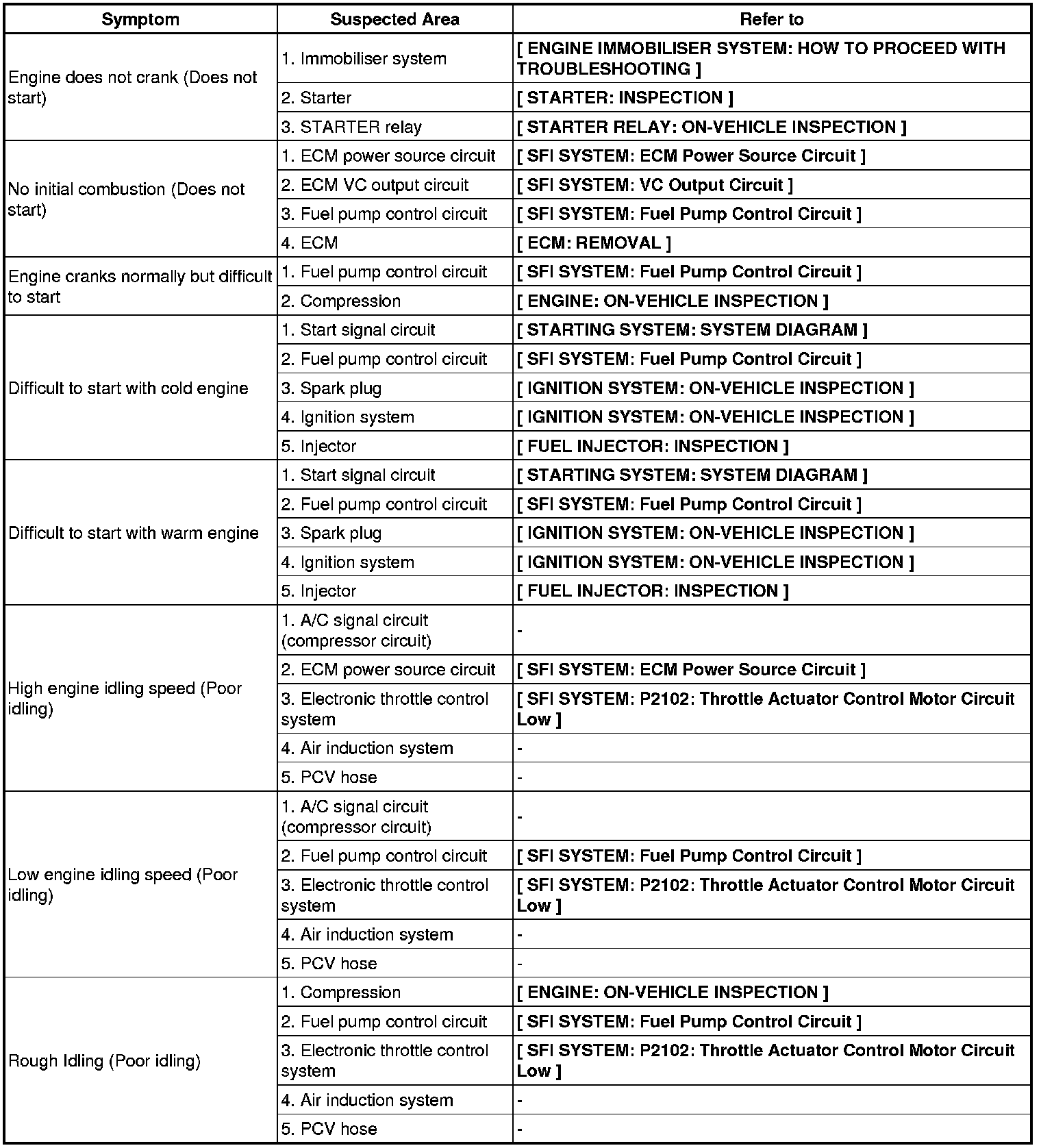

PROBLEM SYMPTOMS TABLE
HINT: When a malfunction is not confirmed by a DTC (Diagnostic Trouble Code) check and the cause of the problem cannot be identified through a basic inspection, troubleshoot according to the priority order indicated in the table below.

SFI system
