Freeze Frame Data

2AZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: FREEZE FRAME DATA

FREEZE FRAME DATA

1. DESCRIPTION
The ECM records vehicle and driving condition information as freeze frame data when a malfunction is detected. When troubleshooting, it can help determine if the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was Lean or Rich, and other data from the time the malfunction occurred.
HINT: If it is impossible to duplicate the problem even though a DTC is detected, confirm the freeze frame data.

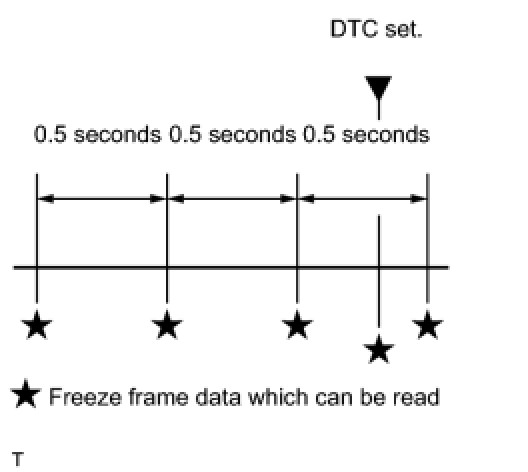

The ECM records engine conditions in the form of freeze frame data every 0.5 seconds. Using the intelligent tester, 5 separate sets of freeze frame data can be checked.





- 3 data sets before the DTC was set.
- 1 data set when the DTC was set.
- 1 data set after the DTC was set.

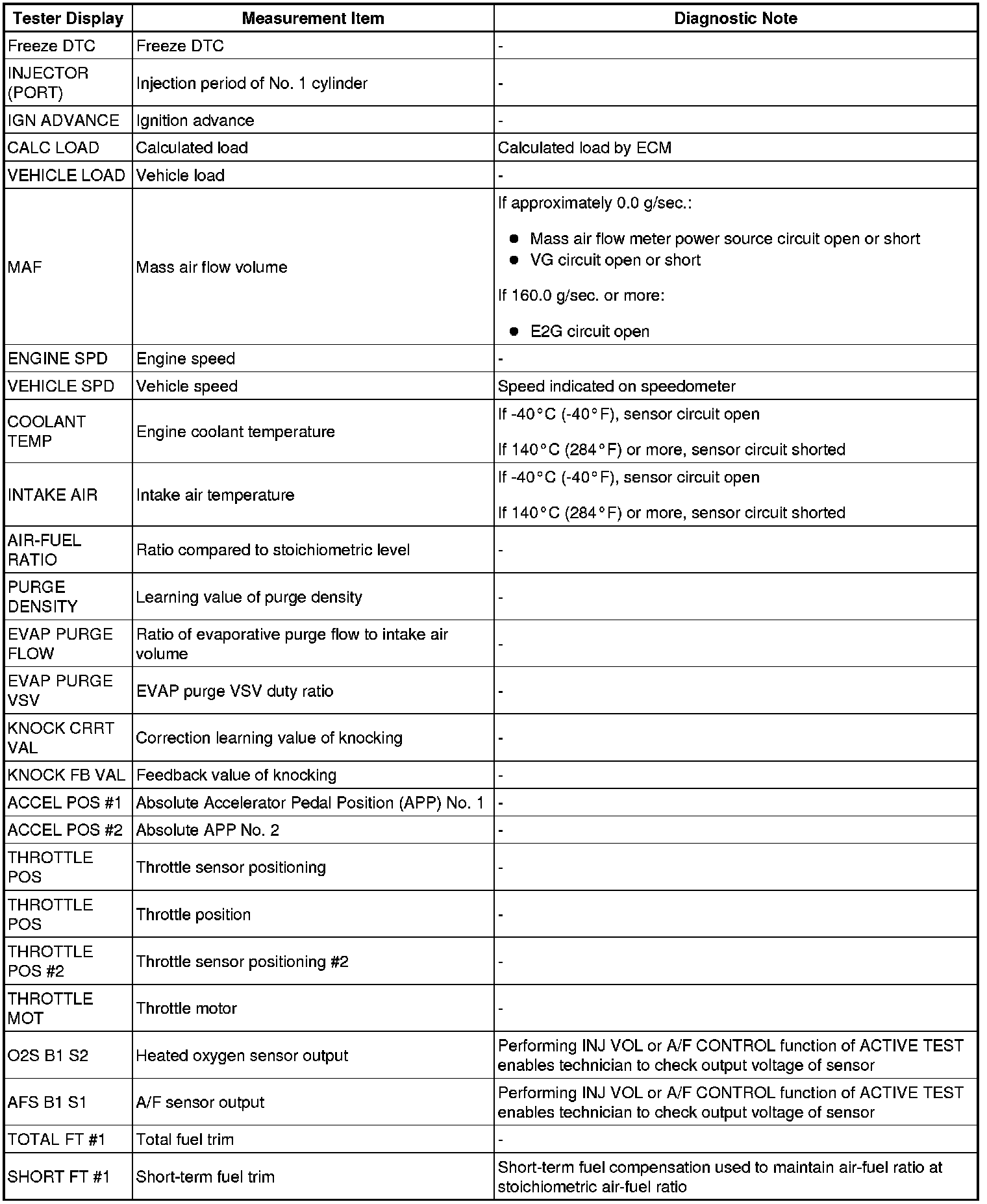

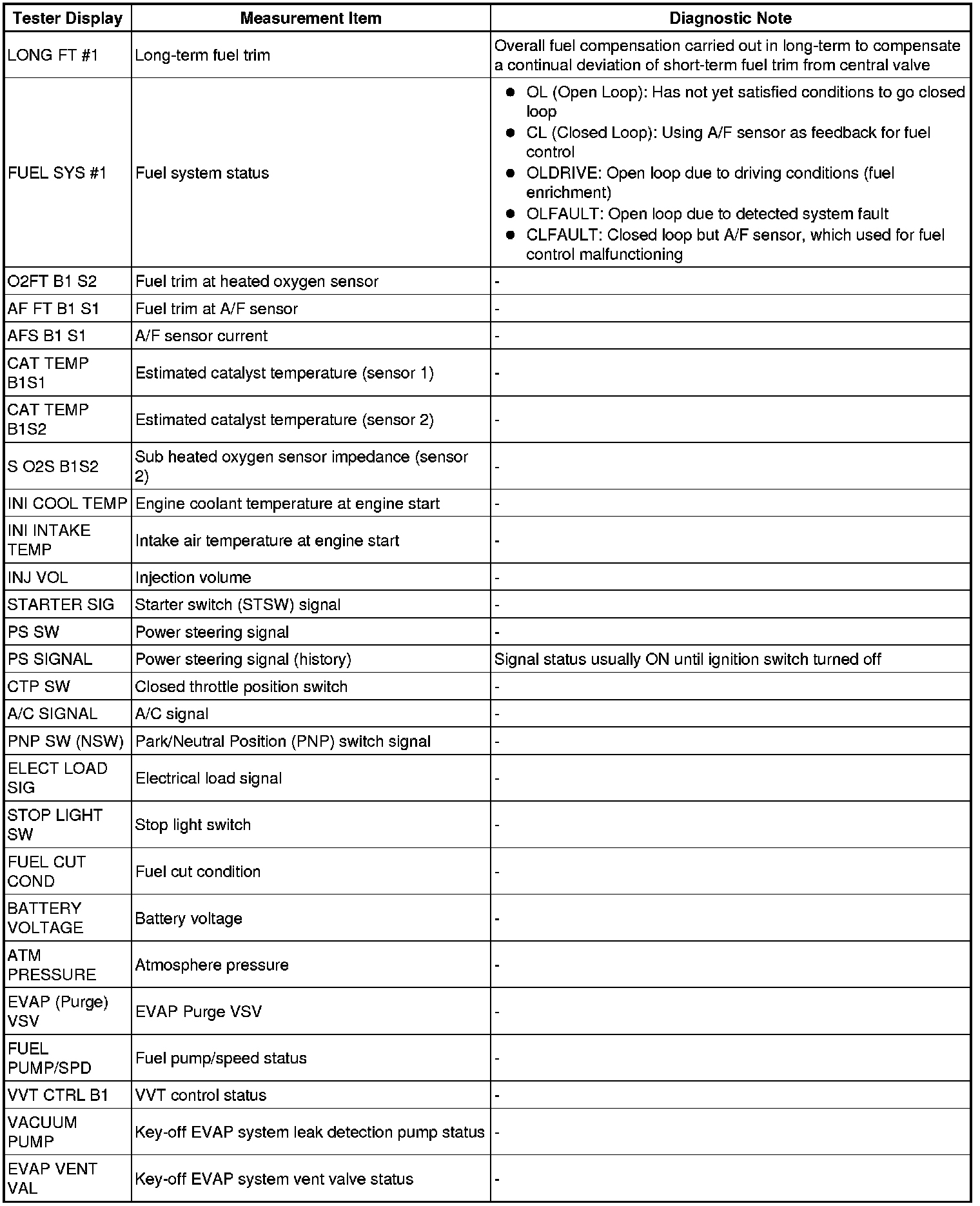

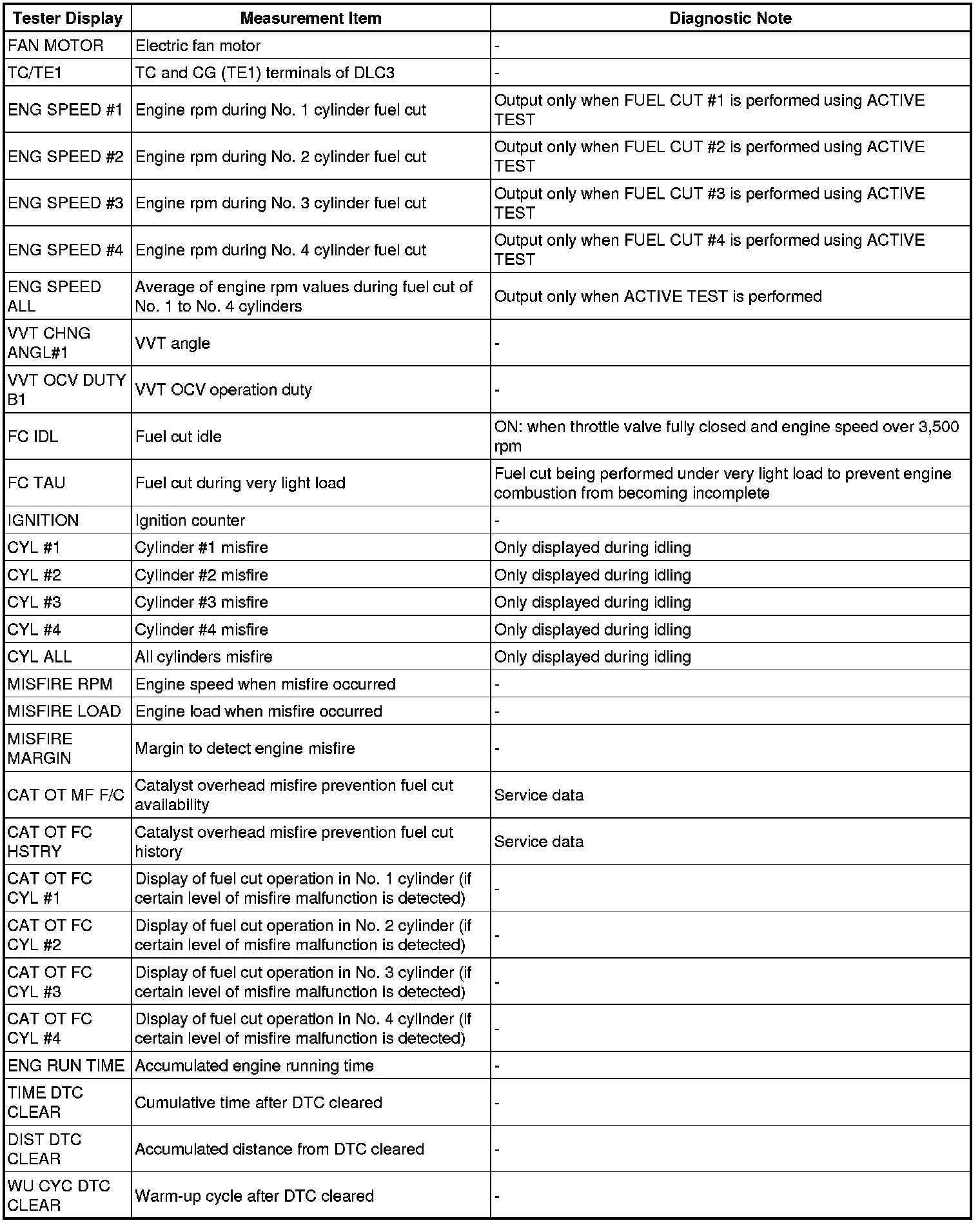

2. LIST OF FREEZE FRAME DATA
