Heated Oxygen Sensor

2AZ-FE EMISSION CONTROL: HEATED OXYGEN SENSOR: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION





1. INSPECT HEATED OXYGEN SENSOR (for Bank 1 Sensor 2)

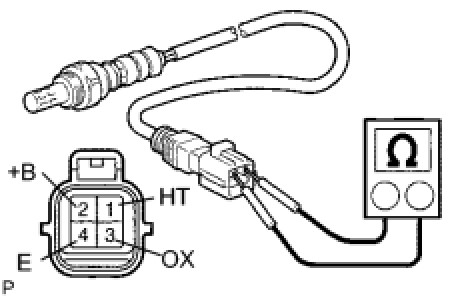

(a) Measure the resistance of the sensor.

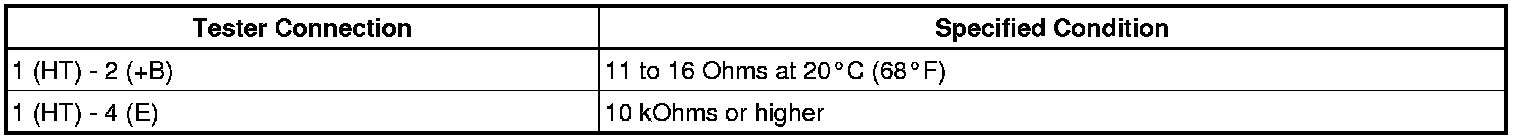

Standard resistance:





If the resistance is not as specified, replace the sensor.
