Camshaft Position Sensor: Testing and Inspection

2AZ-FE ENGINE CONTROL SYSTEM: CAMSHAFT POSITION SENSOR: INSPECTION

INSPECTION





1. INSPECT CAMSHAFT POSITION SENSOR

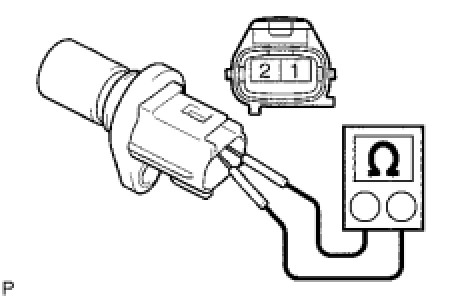

(a) Measure the resistance of the sensor.

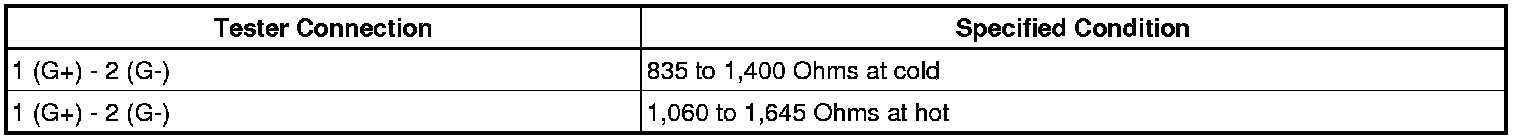

Standard resistance:





NOTE: Cold and Hot mean the temperature of the coils themselves. Cold is from -10 to 50°C (14 to 122 °F) and Hot is from 50 to 100°C (122 to 212°F).
If the result is not as specified, replace the camshaft position sensor.
