Installation

LIGHTING: SIDE TURN SIGNAL LIGHT ASSEMBLY: INSTALLATION

INSTALLATION
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. INSTALL SIDE TURN SIGNAL LIGHT LENS LH
(a) Connect the connector and install the side turn signal light lens LH.

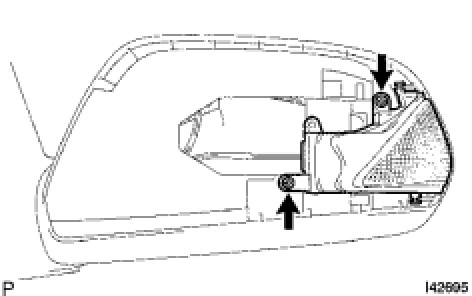

(b) Install the 2 screws.

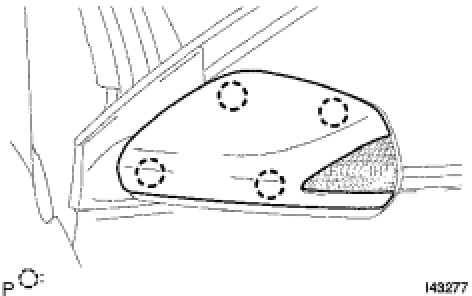

(c) Attach the 4 claws and install the cover.
2. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY LH Installation

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. PERFORM INITIALIZATION
(a) Perform initialization Testing and Inspection.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
